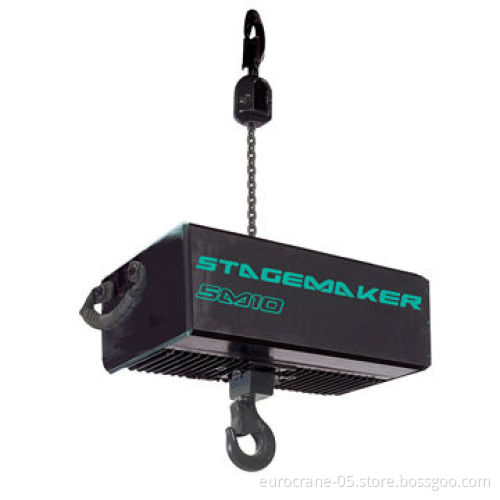

Stage Hoist, High Capacity Chain Bucket

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C or T/T

Product Description

Maximum load: 60-1,000kg

The best solution, hoists designed for entertainment industry

Revolution in computer-controlled hoists

Stagemaker® Cyberhoist was awarded the innovation prizeat the Plaza tradeshow in London and at the LDI at Orlando

Main technical characteristics (version A):

Class F lifting motor
Enhanced safety by load limiter
Electromagnetic disk brake
Power supply: 400V-3Ph-50Hz/460-60Hz-3Ph
Pivoting upper and lower hook
Compact dimensions
Hoist housing made of injection-cast aluminum
Black lifting chain
Load wheel with 5 pockets
Chainflux chain guide system with horizontal output
Mat black painted (RAL 7021)
Ergonomic handgrip for easy transportation
Upright and inverted use in standard configuration and in industrial position by simply shifting chain bucket (SM5 and SM10)
High-capacity chain bucket

Types:

Version A: cost effective direct control for rental and general rigging purposes
Version B: low voltage control for fixed installations
Version C: hoists for controllers with programmable presets
Version D: controls in compliance to BGV-C1 code of praxis
Version E: hoists without controls for external control integration
Version F: cyberhoist, network controlled 3D programmable hoist
Version V: hoists with built-in inverter for smooth speed control
Version S: single phase power supply
Versions A-B-C-E and V are also available in compliance with BGV-D8+ code of praxis

Class F lifting motor

Enhanced safety by load limiter

Electromagnetic disk brake

Power supply: 400V-3Ph-50Hz/460-60Hz-3Ph

Pivoting upper and lower hook

Compact dimensions

Hoist housing made of injection-cast aluminum

Black lifting chain

Load wheel with 5 pockets

Chainflux chain guide system with horizontal output

Mat black painted (RAL 7021)

Ergonomic handgrip for easy transportation
