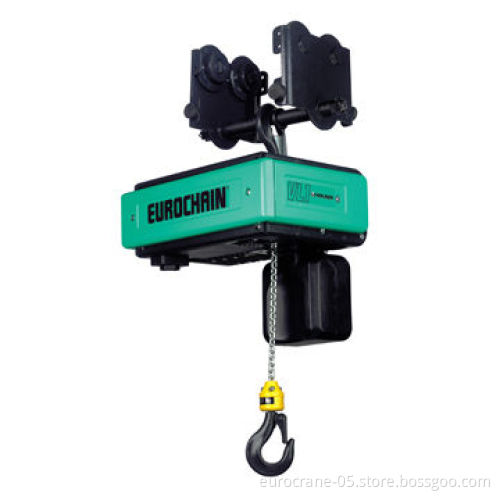

VL Electric Chain Hoists, 60-7500kg Maximum Load, High Technology, High Lifetime, Compact Design

VL Electric Chain Hoists, 60-7500kg Maximum Load, High Technology, High Lifetime, Compact Design

Get Latest Price

Payment Type:: L/C or T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C or T/T

Product Description

Range of high-tech lifting unites, with compact and in-line designed, can suit any specific requirement

Capacities from 60 to 7500kg, 1 or 2-speed hoisting, manual or electric trolley with adjustable speed, height of lift and FEM group 1 or 2m

Designed to provide users with maximum safety and is fitted as standard with a torque limiter, a low voltage control, encode, a hoisting disc brake and as option an upper and lower limit switch

Unit fully complies European machinery 98/37/CEE Directive

Eurochain VL is available as:

Hook suspended
Hooked or fitted onto a push or chain driven trolley
Fitted into Euro-system trolley
Hooked or fitted into a motor-driven trolley

In addition many optional features are available:

Upper and lower limit switches
Non standard main voltage
Hour counter
Radio remote control
IP55 travelling protection
Hoisting and travelling motors thermal protection
Travelling limit switches
Boogies trolley
Short headroom trolley
Stainless steel chain and hook
Hand tight positioner on push button type DIGICHAIN
Rain cover
Hoist according to VGB70
Explosion-proof and spark-proof version
Gear limit switch
Built-in encoder
Additional brake
Stagemaker version for entertainment industry
Safety
Friction torque limiter

It guarantees use of the hoist without overload

Lifting hook: rotating hook made with special steel, conforming to DIN standards, with a safety latch

Limit switch: electric limit switch for upper and lower limits, providing save operation of the hoist (provided as a standard feature on VL16, 20, and 25)

Push button box: very low voltage command, 48V, emergency stop (large button)

Disk brake: electro-magnetic, brake linings tested for longevity of the hoist within its use group

Load limiter: as a standard, all Eurochain VLs are equipped with a torque limiter (safety feature to prevent hoist) for greater longevity

Treated surface: two-component epoxy pain with 80 microns for better protection against corrosive agents

Push button box: water-proof, IP 65 protection, with 2, 4 or 6 buttons

Electrical cubicle: located on the side of the hoist, easy to access

High technology

Chain guide: ensures perfect positioning of the chain around load wheel

Electrical cubicle: very spacious and equipped as a standard with an electric plate that can be fitted with an optional an hour time counter

Hoisting motor: optional mono-phase version available

Load wheel with 5 or 6 pockets for better distribution of the load

BGV C1 (VGB 70): optional BGV C1 version are available
