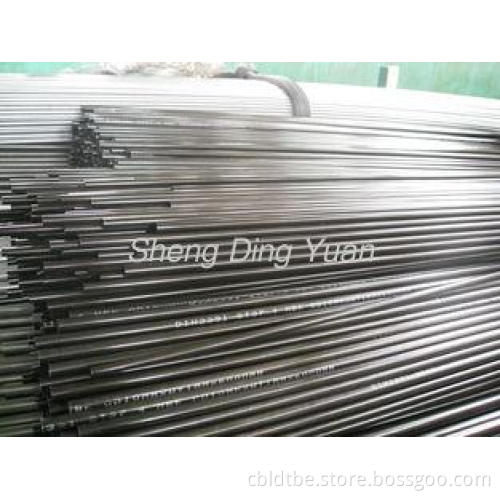

8mm , 10mm Hydraulic Seamless Carbon Steel Tube / Pipe , E215 1.0212
Specifications:
·Size:OD:4mm-60mm,WT:0.5mm-7mm
·Standard:DIN2391/C,EN10305-4
·Material: ST37.4,ST44.4,ST52.4,E235,E355.
·Delivery State:NBK+Black phosphate.
·Length:5.8m,6m.
·Package:Bundles or wooden cases.
·Surface Anti-rust:Both outside and internal tube surface flushing with anti-rust oil.
·Surface quality:very smooth and bright without oxide scale,pock,strach,crack and other defects.
·Surface Cleaness:clean without iron scrap,dust,better for hydraulic system life.
·Properties:better extending rate and strength property,after bending with no deformation,after flattening and flaring process with no crack.
·Raw material:Bao Steel,Huai Steel,XingCheng Steel with good quality.
Quick Detail:
Cold drawn and NBK seamless steel tube is used as the tube to be phosphated.
Used in hydraulic system,nested card connector (pipe joints) with matching.
Description:
Synopsis of Process Routing: Cold drawn and bright NBK seamless steel tube is used as the tube to be phosphated. The phosphated is realized with the imported chemical fluid to form a black film. The antirust oil is absorbed by means of the micro pore on the film to prevent from the rust. The caps are covered at two ends of tube to prevent from the dust.
Main Features: color of steel tube: bright black. Color is homogeneously distributed on the tube surface. The tube has good property of antirust.
Main Application: used in hydraulic system, shippment industry,nested card connector (pipe joints) with matching.
Applications:
Used in hydraulic system,nested card connector (pipe joints) with matching,,automobile and in the occasion where the high precision,brightness,cleanness and mechanical properties of the tube are required
Tolerance Table Of Steel Tube
|
NAME |
SCOPE(mm) |
GB (mm) |
DIN (mm) |
Enterprise control(mm) |
Special high-precision(mm) |
|
OD Out Diameter |
4-30 |
±0.1 |
±0.08 |
±0.05 |
±0.03 |
|
31-40 |
±0.15 |
±0.15 |
±0.05 |
±0.03 |
|
|
41-50 |
±0.20 |
±0.20 |
±0.08 |
±0.03 |
|
|
51-60 |
±0.25 |
±0.25 |
±0.08 |
±0.03 |
|
|
Wall thickness |
0.5-7 |
±10%,Min±0.12 |
±10% |
±10%,Min±0.05 |
±10%,Min±0.03 |
Mechanical prorperties for hydraulic steel tubing
|
Mechanical properties at room temperature |
|||||||||||||
|
Steel grade |
Minimum values for the delivery conditiona,b |
||||||||||||
|
Steel name |
Steel number |
﹢CC |
﹢LCC |
﹢SR |
﹢Ad |
﹢N |
|||||||
|
Rm |
A |
Rm |
A |
Rm |
ReH |
A |
Rm |
A |
Rm |
ReH |
A |
||
|
MPa |
% |
MPa |
% |
MPa |
MPa |
% |
MPa |
% |
MPa |
MPa |
% |
||
|
E215 |
1.0212 |
430 |
8 |
380 |
12 |
380 |
280 |
16 |
280 |
30 |
290 to 430 |
215 |
30 |
|
E235 |
1.0308 |
480 |
6 |
420 |
10 |
420 |
350 |
16 |
315 |
25 |
340 to 480 |
235 |
25 |
|
E355 |
1.0580 |
640 |
4 |
580 |
7 |
580 |
450f |
10 |
450 |
22 |
490 to 630 |
355 |
22 |
Competitive Advantage:
1. Certificate: TS 16949 certificate
2. Our customer: Contitech,Benteler
3. We have been cooperating with many auto parts manufacture,our tubes are widely used in BMW,Volkswagen,and other brands.
4. International brand has been build,now customers worldwide can rely on high quaily “ShengDingYuan” precision steel tube.
5. 400 tons automotive tubes stock capacity,this make our delivery time short and timely.
