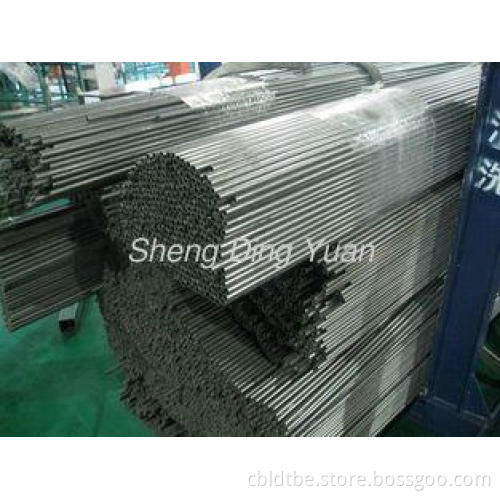

Cold Drawn Tube , Carbon Precision Steel Tube EN10305-1 E235 E535
Quick Detail:
1.Carbon Precision steel tube are made using the cold drawing process. Precision tubes are made from carbon steel from quality Bao Steel,XingCheng Steel,and HuaiSteel.
2. The tubes are high precision in tolerance,excellent surface brightness,no oxidization on the outer and inner walls after heat treatment,high cleanness of inside wall.
3.High level mechanical propertites,no deformation after cold bending,no crack after flaring and flattening.
Specifications:
Outside diameter ranges from 4 to 60 mm and wall thickness ranges from 0.5 to 7mm. Precision steel tubes are delivered according to EN 10305-1, DIN 2391,DIN1630, BS 6323/4,ASTM A519 and JIS G3445.
Tolerance Table Of Steel Tube
|
NAME |
SCOPE(mm) |
GB (mm) |
DIN (mm) |
Enterprise control(mm) |
Special high-precision(mm) |
|
OD Out Diameter |
4-30 |
±0.1 |
±0.08 |
±0.05 |
±0.03 |
|
31-40 |
±0.15 |
±0.15 |
±0.05 |
±0.03 |
|
|
41-50 |
±0.20 |
±0.20 |
±0.08 |
±0.03 |
|
|
51-60 |
±0.25 |
±0.25 |
±0.08 |
±0.03 |
|
|
Wall thickness |
0.5-7 |
±10%,Min±0.12 |
±10% |
±10%,Min±0.05 |
±10%,Min±0.03 |
Steel grades for carbon Precision steel tube
|
Standard |
Material |
|
EN10305-1 |
E215, E235, E255, E355,C45E, 30GrMo |
|
DIN2391 |
ST35, ST45, ST52, ST37.4 |
|
BS6323/4 |
CFS3,CFS4,CFS5,CFS8 |
|
ASTMA519 |
SAE1010,SAE1020,SAE1045 |
|
JISG3445 |
STKM11A,STKM13A |
|
SAEJ524 |
SAE1010 |
|
DIN1630 |
ST37.4,ST44.4,ST52.4 |
Delivery condition and heat treatment processing
|
Delivery Condition |
Heat treatment process |
|
+C |
Cold drawn/hard.After the last cold forming,no heat treatment. |
|
+LC |
Cold drawn/soft.After the last heat treatment follows the cold drawing there is a light finishing pass.
|
|
+SR |
Cold drawn and stress relieved annealed. After the final cold drawing process the tubes are stress relieved annealed in a controlled atmosphere. |
|
+A |
After the final cold drawing process the tubes are stress relieved annealed in a controlled atmosphere. |
|
+N |
Normalized. After the last cold drawing process the tubes are annealed in a controlled atmosphere. |
Synopsis of Process Routing: Quality Carbon steel — Cold Drawn — Heat Treatment Without Oxidization (NBK Status) — Nondestructive Testing— Flushing The Internal Hole With Special Equipment Under The High Pressure —Dealing With Antirust Oil On Surface — Plastic Capping On Both Ends.
Applications:
Precision tubes are used in hydraulic system,automobile,mechanical parts and in the occasion where the high precision,brightness,cleanness and mechanical properties of the tube are required.
Competitive Advantage:
- Certificate we awarded:TS 16949
- Our typical customer: Continential Contitech,Benteler.
- We have passed BMW’S review.
- We have been cooperating with many auto parts manufacture,our tubes are widely used in BMW,Volkswagen,and other brands.
- 400 tons precision steel tubes stock capacity,this make our delivery time short and timely.
