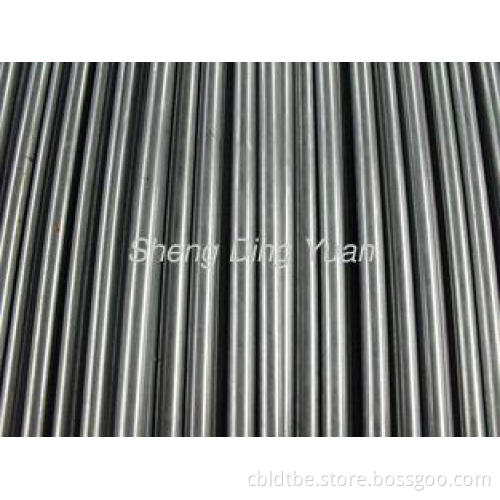

Small Diameter Carbon Steel Mechanical Tubing 30mm 32mm OD
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|
Small Diameter Carbon Steel Mechanical Tubing 30mm 32mm OD For Hydraulic System
- Standard:EN10305-1/4
- Size:OD4-60mm,WT:0.5-6mm
- Material:E235,E255,E355
- Delivery State:NBK/GBK,BK,BKW,BKS.
- Raw material:Bao Steel,Huai Steel,XingCheng Steel with good quality.
- Length:5.8m,6m.
- Package:Bundles or wooden cases.
- Surface Anti-rust:Both outside and internal tube surface flushing with anti-rust oil.
Quality Features:
- Surface quality:very smooth and bright without oxide scale,pock,strach,crack and other defects.
- Surface roughness:Ra:0.8-1.3 um.
- Straightness:0.5-1mm/1000mm.
- Internal hole Cleaness:clean without iron scrap,dust.
- Mechanical Properties:better extending rate and strength property.
Tolerance Table for Automotive Seamless Round Mechanical Tubing
|
NAME |
SCOPE(mm) |
GB (mm) |
DIN (mm) |
Enterprise control(mm) |
Special high-precision(mm) |
|
OD Out Diameter |
4-30 |
±0.1 |
±0.08 |
±0.05 |
±0.03 |
|
31-40 |
±0.15 |
±0.15 |
±0.05 |
±0.03 |
|
|
41-50 |
±0.20 |
±0.20 |
±0.08 |
±0.03 |
|
|
51-60 |
±0.25 |
±0.25 |
±0.08 |
±0.03 |
|
|
Wall thickness |
0.5-7 |
±10%,Min±0.12 |
±10% |
±10%,Min±0.05 |
±10%,Min±0.03 |
Chemical composition of Carbon Steel Mechanical Tubing
|
Chemical composition(cast analysis)a |
|||||||
|
Steel grade |
% by mass |
||||||
|
Steel name |
Steel number |
C |
Si |
Mn |
P |
Sb |
AI |
|
max. |
max. |
max. |
max. |
max. |
min. |
||
|
E215 |
1.0212 |
0.10 |
0.05 |
0.70 |
0.025 |
0.025 |
0.025 |
|
E235 |
1.0308 |
0.17 |
0.35 |
1.20 |
0.025 |
0.025 |
- |
|
E355C |
1.0580 |
0.22 |
0.55 |
1.60 |
0.025 |
0.025 |
- |
Mechanical properties of Carbon Steel Mechanical Tubing
|
Mechanical properties at room temperature |
|||||||||||||
|
Steel grade |
Minimum values for the delivery conditiona,b |
||||||||||||
|
Steel name |
Steel number |
﹢CC |
﹢LCC |
﹢SR |
﹢Ad |
﹢N |
|||||||
|
Rm |
A |
Rm |
A |
Rm |
ReH |
A |
Rm |
A |
Rm |
ReH |
A |
||
|
MPa |
% |
MPa |
% |
MPa |
MPa |
% |
MPa |
% |
MPa |
MPa |
% |
||
|
E215 |
1.0212 |
430 |
8 |
380 |
12 |
380 |
280 |
16 |
280 |
30 |
290 to 430 |
215 |
30 |
|
E235 |
1.0308 |
480 |
6 |
420 |
10 |
420 |
350 |
16 |
315 |
25 |
340 to 480 |
235 |
25 |
|
E355 |
1.0580 |
640 |
4 |
580 |
7 |
580 |
450f |
10 |
450 |
22 |
490 to 630 |
355 |
22 |
Delivery condition and heat treatment processing
|
Delivery Condition |
Heat treatment process |
|
+C |
Cold drawn/hard.After the last cold forming,no heat treatment. |
|
+LC |
Cold drawn/soft.After the last heat treatment follows the cold drawing there is a light finishing pass.
|
|
+SR |
Cold drawn and stress relieved annealed. After the final cold drawing process the tubes are stress relieved annealed in a controlled atmosphere. |
|
+A |
After the final cold drawing process the tubes are stress relieved annealed in a controlled atmosphere. |
|
+N |
Normalized. After the last cold drawing process the tubes are annealed in a controlled atmosphere. |
Production process: Quality Carbon steel — Cold Drawn — Heat Treatment Without Oxidization (NBK Status) — Nondestructive Testing— Flushing The Internal Hole With Special Equipment Under The High Pressure —Dealing With Antirust Oil On Surface — Plastic Capping On Both Ends.
Production process quality control: We use the domestic first-class drawing machine,the production process is controlled with high hardness alloy internal and external matrix,so the product dimensions tolerance and ovality are strictly controlled in high level.Through the first, middle and last process inspection to ensure product quality.
Inner and Outer Surface Cleaning: We adopt automatic inner surface cleaning machine, rotating brush cleaning and high pressure oil flushing to clean the inner and outer surface.The new steel tube production craftsmanship can effectively remove all particulate attached to the inner and outer surface of tubes and thus achieving the utmost surface cleaness and polishness.
Applications:
Automotive tubes are used for production of automotive steering systems,clutch system, braking system engine high pressure oil injecting tube,cardan shafts, shock absorbers and air springs, parts of the chassis, axle shafts, construction parts of chassis and axles, steering components, seats construction, bracing for dashboard.
Marking of precision tubes and bundles of precision tubes
Marking of standard precision tubes is done according to standards or upon agreement by the InkJet system either in one spot or along the whole length of a tube. Bundle marking is done either by one or multiple labels with required data.
Competitive Advantage:
- Certificate approved:TS 16949
- Our typical customer: Continential Contitech,Benteler.
- We have passed BMW’S review.
- We have been cooperating with many auto parts manufacture,our tubes are widely used in BMW,Volkswagen,and other brands.
- 400 tons precision steel tubes stock capacity,this make our delivery time short and timely.
