250 bhp 5L fruit juice , milk , tea , beer Automati Water B

Description of major equipment

Auto-rotating rinser
Outline:
ZX-3-type washer is installed my factory production of ancillary products, bottle machines, machine startup drive, low noise, reasonable design, easy assembly and disassembly, simple operation, widely used in a variety of water, wine and other large PET bottle washing bottles
THE Main technical parameter:
Model Number: ZX-3
Production capacity: 250bph
Bottle diameter: D = φ130 ~ φ160mm
Bottle Height: H = 160 ~ 400mm
Air pressure :0.6-0 .8 mp
Overall consumption: 0.3 cubic meters / minute
Dimensions: 1150 * 1100 * 1800mm
Weight: 180Kg

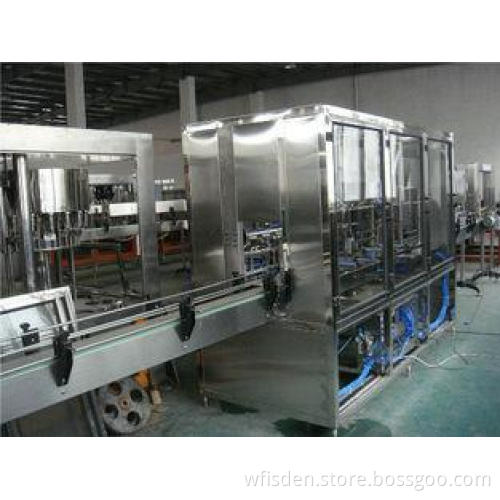

Automatic linear filling machine

Outline:
ZG-3 series isobaric filling machine is the introduction, digestion and absorption of foreign advanced technology, according to China's beverage filling craft requirements, innovations developed from a kind of advanced filling equipment, mainly used for pure water , mineral water and other non-carbonated beverage filling capacity. Advanced structure, smooth, reliable, easy to operate, can be variable speed, high production efficiency characteristics. Is ideal for small and medium sized beverage filling equipment factory.
THE Main technical parameter:
Model: ZG-3
Production capacity: 250 bph
Filling pressure: atmospheric pressure
Filling temperature: room temperature
Power: 0.55kw
Air pressure: 0.6-0.8mp
Overall consumption: 0.3 cubic meters / minute
Dimensions: 1050 * 1100 * 1800 mm
Weight: 230KG



Automatic capping machine

Outline:
ZXG-1-type automatic capping machine, digestion and absorption of foreign advanced technology, integrated China's national conditions and design. It has advanced design, reasonable structure, beautiful appearance, convenient debugging. And to achieve a certain degree of automation, and affordable, is ideal for small and medium sized beverage manufacturers equipment, widely used in wine, mineral water, purified bottled water and other liquids capping.
THE Main technical parameter:
Capping heads: single head
Production capacity: 250bph
For bottle size: H = 160 ~ 400mm
D = φ130 ~ φ160mm
Applicable bottle: Standard screw caps
Motor power: 0.55kW
Management cover Motor: 0.09 kW
Dimensions: 900 * 700 * 1950mm
Weight: 300kg



Conveying power head
Power: 0.55KW
Function: Passing bottles, according to the production capacity of the conveying speed can be adjusted.Transporting intermediate frame
Tentative 12 m




Equipment List
