21000BPH Linear Carbonated Drink Filling Machine / Equipmen

21000BPH Linear Carbonated Drink Filling Machine / Equipment , High Efficiency

1.Basic data of carbonated water production line:

Project Company:
Project name: 21000BPH carbonated beverage production line
Filling products: carbonated water
Production capacity: 21,000BHP (500ml)
Liquid level: It meets customer’s demand
Bottle: Raw materials: PET bottle
Type: roundly or squarely (undetermined)
Quantity: 500ml 250ml
Empty bottle weight: wait for customer’s supply
Specification of the bottleneck: 28mm

The minimum / maximum diameter: 50mm-110mm
The minimum / maximum height:165mm-340mm

Bottle cap Raw materials: HDPE
Specification: 28mm diameter flat cap are screwed advanced, can meet the demand of cap sealing.

2.Description of the water treatment and preparing treatment :

Basic data:
Sugar melts system:
Include: high-speed sugar melts tank, syrup transportation pump, and syrup filtration.
Blending system:
Include: blending tank, detergent transportation pump, fine filter, syrup cooler (plate), cooling water storage tank.



3. The main equipments description of the production line:

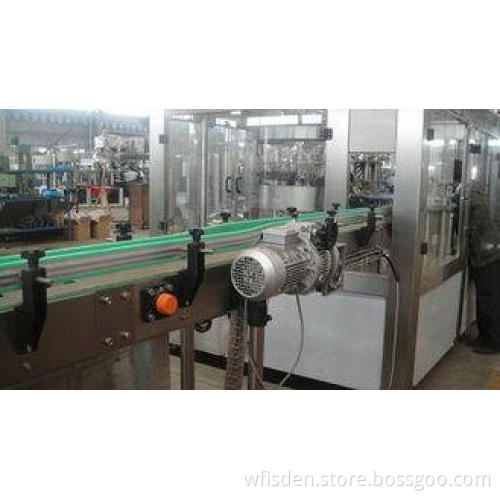

1 ,Air conveyor

Air conveyor is a bridge between the unscramble and 3 in 1 filling machine. Air conveyor is supported by the arm on the ground; the air blower is settled on the air conveyor. Each inlet of air conveyor has an air filter to prevent dust coming into. Two set of photoelectric switch settled in the bottle inlet of the air conveyor, which can control the unscramble “slow-down”, “stop”, “speed-up”, and “start”. The bottle is transferred to 3 in 1 machine through wind.

Main character

Except support arm etc. which are made of plastic or risen material, other parts are made of SUS AISI
Air blower is settled with air filter to prevent dust coming into the bottle.
There is an adjustable joint settled in air conveyor. Do not have to adjust the height of unscrambled and air conveyor to meet the demand of different bottle, only adjust the height of bottle inlet.
There is a block bottle clear device driven by cylinder. When bottle block in the inlet, it clear the bottle automatic, this can avoid breaking the parts of unscramble.
There is a photoelectric switch settled in the bottle inlet, when the bottle is detected, unscramble stop. When the bottle leave the switch, unscramble run again.

Main technical parameter

Type: F-9
Air blower quantity: 1 /3m
Power : 2.2KW/set
Air conveyor length: according to the installation plan
