Automatic 3-In-1 Gas Drink / Carbonated Drink Filling Machi

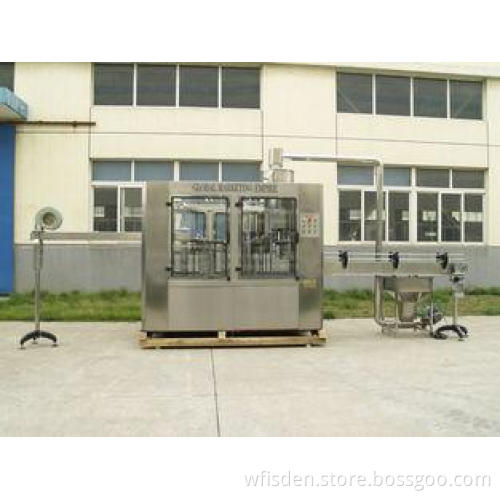

Automatic 3-In-1 Gas Drink / Carbonated Drink Filling Machine / Equipment / Line , 2000b/h

1. Equipment List:

1)ZCP-12 auto washer:

1, washing heads: 12
2, Power: 1.1kw

3, Dimension: 1150 * 1100 * 1700
4, Weight: 400kg

(CP-24 semi-automatic rinser)

1, washing heads: 24
2, Power: 0.55kw

3, Dimension: ¢ 850 * 1400
4, Weight: 150kg

2)GD-12 automatic isobaric filling machine:

1, filling heads: 12
2, Power: 1.5kw

3, Dimension: 1200 * 1100 * 1850
4, Weight: 500kg

3)WFG-40 Automatic Capping Machine:

1, capping heads: single head
2, Power: 0.7kw

3, Dimension: 900 * 700 * 20 00
4, Weight: 500kg

4) bottle conveying system:

Nursing bottle rack 4, 1 m / section, about 15 m stainless steel chain plate, bracket a passive, active platform 1,

5)QHS-1500 drink mixer:

1, the output :1-1 .5 t / h
2, Power: 1.1kw

3, Dimension: 900 * 600 * 17 50
4, Weight: 250kg



2.Project Overview:

Depending on the configuration program, by the automatic bottle blowing machine blowing into the buffer bottle after a fight with a conveyor belt, the bottle Lifting to Unscrambler, then managers bottle neatly arranged after entering through the air conveyor washing, filling and capping three in one unit.

Triple unit into the bottle, rinse with ozone water, filling materials, after capping machine capping machine with conveyor sent outside after entering the packaging system.

In the post-packaging systems, first inkjet printer in a spray bottle production date and batch number on the bottle for Chit after treatment, with automatic labeling machine label and shrink sleeve label, after passing through the light inspection, with the automatic packing machine packing after artificial pallet, storage.

3. Features:

(1)The suspending bottleneck clamping design make the bottle stable during the high-speed moving conditions. By changing a few parts, it can meet the need of production of different types of bottles easily.

(2)The new generation of stainless steel grab is adopted and the grabs have no contact with the area above the bottle’s screw thread. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.

(3)The advanced micro negative -pressure filling technology used in this machine makes the filling quick, steady and accurate. The beverage-holding tank is fully-closed and also, temperature-control device and CIP washing interface are installed.

(4)This machine can meet all the technical requirements for hot-filling below 95°C.And before capping, bottle-mouth will be cleaned by R.O. Washing device.

(5)Magnetic torque is used for screw capping, and the power of screw capping can be adjusted steplessly. Capping is reliable and do no harm to the caps.

(6)Advanced technologies, such as human-machine interface touch-screen and PLC computer program control are adopted in this machine.
