Mineral / Drinking Water Automatic 5 Gallon Filling Machine

Mineral / Drinking Water Automatic 5 Gallon Filling Machine / Equipment , 900 bhp

1．Introduction:

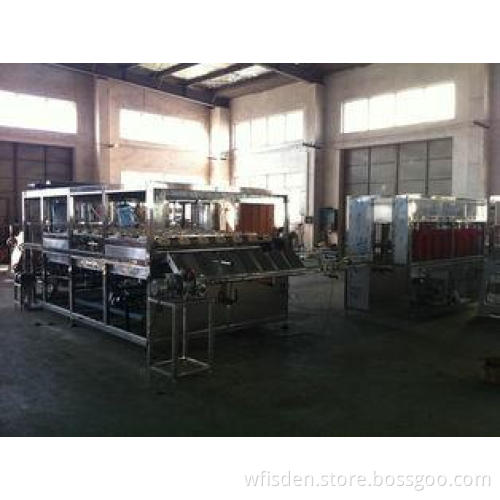

QGF-900 type barreled water production line is designed for high-end users 5 gallons barreled drinking water washing / filling / capping production. It adopts PLC programmable controller completes the automatic control through the power to complete the automatic conveyor belt outside the brush, automatic bucket device will push into the barrel 5 gallons empty bucket seat, through multi-channel disinfectant / reuse water / sterile water after moving to perfusion by six fast filling valve time setting in the PLC level perfusion fixed under the control, and then the power transmission complete with automatic cover of the gland crawler continuous work, and then turn the power conveyor carried 5 gallons finished water of the artificial light inspection / labeling / set automatic Shrink Plastic and other work.

2. QGF-900 drum machine structure and performance characteristics:

1, stainless steel square tube Rack, brushed stainless steel plate fully enclosed structure, manufacturing fine.
2, West Germany alone cabinet contactors and Taiwan Xinje PLC, Korea sensors, automatic control.
3, South Korea Aipu Tai cylinder, valve and regulator filter atomizer, keep the air clean.

3.QGF-900 type barreled production line equipment list:

4. Process:

Hand on the outer barrel → transport → Online → transport → Automatic brush bucket → → lye dripping a heated sterile water rinse 2 → 2 → backwater rinse sanitizer rinse 3 → 3 → sterile water dripping 2 → automatic filling stations under the barrel to the gland → transport → filling → ​​→ → artificial light inspection cover film winders → → hot pail bagging machine certificate → → sticky roller conveyor off the production line to finished products.

5. QGF-900 barreled production line auxiliary equipment:

1, shrink film machine
The body temperature uniformity, plastic film shrinkage effect.
Power: 6KW, Dimensions: 700 × 600 × 1000mm.
2, automatic bucket device
Empty bucket conveyor washing and disinfection procedures set by the host via PLC pneumatic proximity switches and control devices on the barrel barrels complete automatic operation, conveyor positioning stable.
3, stainless steel conveyor belt power
Using adjustable speed reducer, smooth delivery, adjustable speed and durability.
Online brush bucket conveyor section: length 10 m; Automatic bucket conveyor section: length 3 m;
Finished the bucket conveyor section: length 4.5 m and length of 8 meters.
Conveyor speed reducer power:
10 m / 8 m 0.75KW × 2 units = 1.5KW; 3 m 0.37KW × 1 units = 0.37KW; 4.5 m = 0.55KW 0.55KW × 1 units of 2.42KW.
4, filling the host check box front and rear lights
Ensure that staff carefully inspect empty barrel filling production line and finished quality of bottled water.
Dimensions: 800 × 500mm, 1 one;
5, online auto outer brush barrel machine
By circulating cleaning fluid for 5 gallons PC barrels conduct foreign brushing. The stainless steel conveyor belt and automatic power on the barrel
Means for conveying to the host for subsequent bucket seat disinfection, cleaning, filling, and sealing work.
Dimensions: 2400 × 1160 × 1850mm Power: 1.3KW
