450BHP Linear 5 Gallon Water Filling Machine , 11 Worker-Bi

450BHP Linear 5 Gallon Water Filling Machine , 11 Worker-Bit Disinfection And Sterilization Rinse

1. Process:

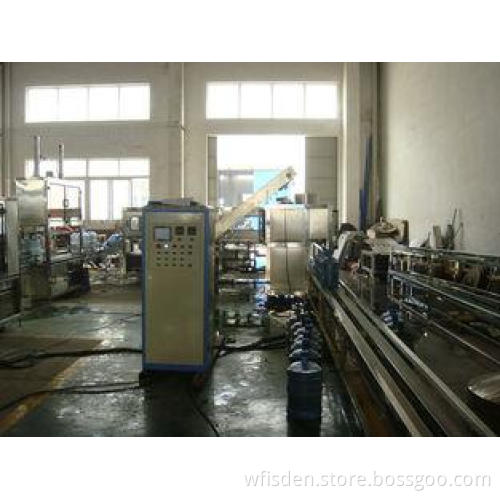

Recycling bins → manual transmission → Online outer barrel → → automatic barrel brush dripping a → rinse → 8 → 2 → Automatic drip down to the filling station barrel automatic filling → ​​→ → transport → automatic capping light inspection → → Hot artificial sets of standard winders certificate → → stick off the production line to the finished products.

2. 450 barrels / hour (5 gallons) a large bucket of water filling line equipment list:

3. QGF-450B drum machine host structure and performance characteristics:

1) stainless steel tube racks, brushed stainless steel plate fully enclosed structure, manufacturing sophisticated, elegant appearance.
2) Taiwan's PLC program-controlled device, Delixi company contactors, Otto Knicks (South Korea) company proximity switches, fully automatic control.
3) Shanghai Hill Naisi air cylinder, the valve and regulator filter atomizer.
4) China Brand (South) stainless steel pumps, power disinfecting rinse.
5) Chinese famous brand (flying camel) reducer machine lose barrels of, running stable and reliable.
6) Host use centralized-style drainage.
7) 11 worker-bit comprehensive disinfection and sterilization rinse: The first Tao for the water dripping Drain the workers-bit; second, three sterile water backwater rinse; Fourthly, the five, six disinfection liquid rinse; Seventh, the eight, nine finished product sterile water rinse; tenth, eleven drain. Let barrel outside the red sprinkler.
8) finished tank is not set within the host, but by water treatment equipment terminal tank through two pipes and drums, respectively, washing machine filling with reserved port connection, ensure that the finished product is always sterile water filling in confined conditions, to avoid set in the host due to produce the finished tank secondary pollution is now happening.
Filling water use Interface: Dg60 Filling pump select a parameter: Flow 12T / h; lift 20 m
Rinse water Interface: Dg32 cleaning pump select a parameter: Flow 3T / h; Head 30 m
9) the domestic advanced rationale Gai hanging Gai technology, flying camel rationale Gai reducer mechanical and electrical machines. To reduce the lid frequently added, according to customer requirements supporting automatic lid, automatic cover is added to the LM lid.
10) side-stream-style back to the sink, sampling, with liquid convenient, stainless steel strainer to prevent the debris into the water tanks. Settings disinfecting liquid level meter, which greatly facilitates the user pairs of liquid medicine water tank liquid level at any time Observations, low liquid level can be in a timely manner supplement.
11) host has a appear fault buzzer automatic alarm function, troubleshooting fast.
12) plug-in-style main drive reducer machine connection to the host disinfection, cleaning the chain (large pitch) take the initiative to axis, the workers-bit moves smoothly, by the proximity switch Detection positioning, maintain the flushing nozzle pairs of positive barrels of the mouth center, dislocation adjustable.
13) plug plate inspection windows, convenient and quick. Four plastic protective curtain, prevention of the rinsing liquid outside the splashing.
14) complete machine Power: about 4KW.
15) Outline Dimensions: Approx. 4500 × 1850 × 2100mm
16) Filling water use: Maximum 9 t / O'clock; rinse water consumption: ≤ 2 tons / O'clock; centralized drainage Interface: Dg50
17) complete machine Weight: about 1.3 thousand kg
