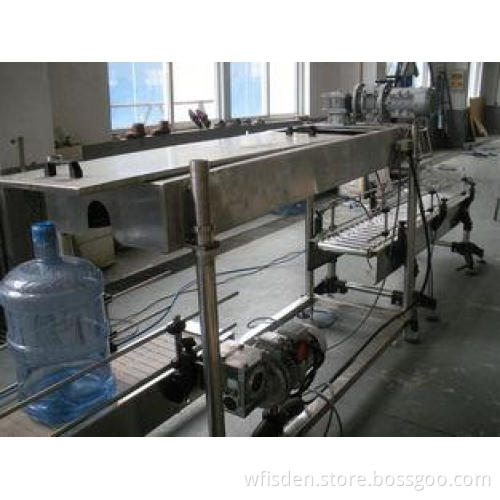

300bhp 5 Gallon Water Filling Machine , Drinking Water Production Line , High Efficient
1.Outline:
QGF-300 type drum line is designed for 5 gallons barreled drinking water production line of core equipment. Mineral water, distilled water, pure water production the ideal equipment. Made of stainless steel. Taiwan Xinje PLC programming automatic control, pneumatic elements adopt Korea Aipu Tai products. Wash tub with spray nozzles are used by the U.S. company's technology.
The line equipment is compact, efficient, and reliable, quick action is correct, high degree of automation, is the Trinity barreled automatic machine electrical equipment.
2. Configuration instructions:
|
Number |
Name |
Quantity |
Remark |
|
1 |
Management cover motor |
1set |
Zhejiang |
|
2 |
Conveyor motor |
1 set |
Zhejiang |
|
3 |
Filling pump |
1 set |
Nanfang |
|
4 |
Flush pump |
3 set |
Nanfang |
|
5 |
Automatic bucket conveyor |
8m |
Shanghai |
|
6 |
Double stainless steel conveyor bucket ou |
4m |
Shanghai |
|
7 |
Inner nozzle |
12 piece |
Shanghai |
|
8 |
Outer annular nozzle |
1piece |
|
|
9 |
Air system |
1set |
Korea Aipu Tai |
|
10 |
PLC programmable control |
1set |
Taiwan Xinje |
|
11 |
PVC-U pipes, valves |
1set |
|
|
12 |
304 Rack |
|
Guangdong |
3. Equipment List:
|
Number |
Name |
Quantity |
|
1 |
ZWS-300 outside the brush barrel machine online |
1 |
|
2 |
6 meters into the bucket conveyor and bucket on the device (including two power head) |
1set |
|
3 |
QGF-300 red, filling, sealing production line |
1 |
|
4 |
4 m the bucket conveyor (a power head) |
1set |
|
5 |
Shrink Machine |
1 |
|
6 |
Light inspection |
1 |
|
7 |
Robot automatic bagging machine pail |
1 |
4. the main technical parameters:
Model: QGF-300
Filling heads: 2
Filling Capacity: 5 gallons
Bucket Dimensions: ¢ 276 * 490
Production capacity: 300 barrels / hour
Power supply: 380V, 50HZ, Power: 3.5KW.
Water: Filling 6T / h
Flushing process: first: drip; second, three: sterile water reuse water rinse; fourth, five: disinfectant rinse; sixth, seven: sterile water; tenth, eleven: drip .
Gas source: Pressure 0.5-0.6MP, Gas Consumption 0.25 cubic meters / minute (user-owned)
Structure type: Pull bucket chain to gear stepper drive, cylinder gland.
Disinfectant, back to the water tank: External.
Dimensions (mm): 3800 * 1550 * 2100mm
Weight: about 1.6T
