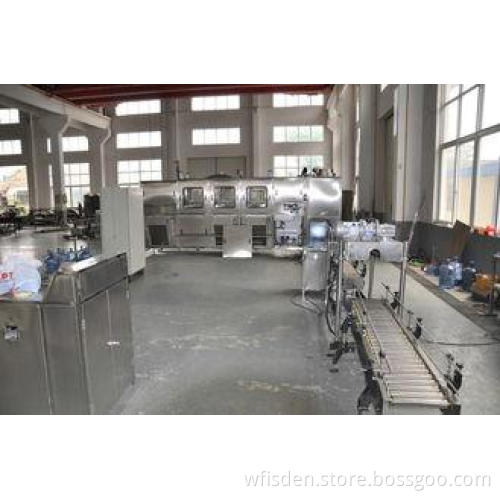

Electric 5 Gallon Water Filling Machine For Plastic Bucket

Electric 5 Gallon Water Filling Machine For Plastic Bucket , Centralized Drainage

1.QGF-300B drum machine host structure and performance characteristics:

1) stainless steel tube racks, brushed stainless steel plate fully enclosed structure, manufacturing sophisticated, elegant appearance.
2) Mitsubishi PLC programmable controller, Schneider contactor, Otto Knicks (Korean) companies close, photoelectric switches, automatic control.
3) Korea Aipu Tai cylinder, valve and regulator filter atomizer.
4) China Brand (South) stainless steel pumps, power disinfecting rinse.
5) China Brand (Cosmopolitan) gear transmission bucket, stable and reliable.
6) host using food-grade PVC-U pipe connections, centralized drainage.
7) 11-station comprehensive sterilization washing: The first is dripping drain; second, three 45-degree heat caustic; fourth, five backwater sterile water rinse; sixth, seventh disinfectant rinse; eighth, nine finished sterile water (located outside of the barrel spray) tenth, eleven drain.
8) finished tank is not set within the host, but by water treatment equipment terminal tank through two pipes and drums, respectively, washing machine filling with reserved port connection, ensure that the finished product is always sterile water filling in confined conditions, to avoid set in the host due to produce the
finished tank secondary pollution is now happening.
Filling Water Interface: DN50 filling pump selection parameters lift 20 m
Rinse water interfaces: DN25 cleaning pump selection parameters lift 30 m
9) nozzle bung for strong red bottle umbrella.
10) domestic advanced management cover hanging cover technology, Zhejiang management cover the motor. To reduce the lid frequently added, according to customer requirements supporting automatic lid, automatic cover is added to the LM lid.
11) lateral flow back to tank, sampling, dosing convenience, stainless steel strainer to prevent debris entering
the tank. Set disinfection level sight glass, which greatly facilitates the user to observe any liquid tank level, low level
can replenish.
12) host has failed buzzer alarm function, troubleshooting fast
13) plug-in main drive gear connected to the host decontamination chain plate drive shaft, station moves smoothly from the proximity switch detects positioning, keeping the mouth rinse nozzle barrel center positive,
dislocation adjustable.
14) Insert plate inspection windows, and convenient. 3 plastic protective screens to prevent flushing
liquid splashing.
15) Total power: about 4.03KW.
16) Dimensions: Approximately 4500 × 1550 × 2200mm
17) Filling with water: max 6 t / h; rinse water consumption: ≤ 1 ton / h; centralized drain connection: DN50
18) Weight: about 1,200 kg

2.QGF-300 barreled production line auxiliary equipment:

1) shrink film machine, hood body temperature uniformity, automatic temperature control system, so that the lid always maintain the best shrink film shrink results.
2) automatic barrel devices, control and accurate positioning. Conveyor with adjustable speed reducer,
transmission smooth barrel.
3) the power of stainless steel conveyor bucket, using adjustable speed reducer, smooth delivery, adjustable speed and durability.
4) Filling host set light inspection box, ensure that staff in the filling production line and into the empty barrel meticulous inspection
Product quality of bottled water.
5) Online Auto outer brush barrel machine, using circulating cleaning fluid for 5 gallons PC bucket bottom of the barrel, barrel body, barrel
Shoulder, neck scrub buckets. The stainless steel barrel powered conveyor belts and automatic equipment, transportation to the host into the bucket seat
OK subsequent disinfection, cleaning, filling and capping work.
6) Online pulling cap: First, reduce labor intensity, improve labor efficiency, which will help business management; two is to give manufacturers to bring direct economic benefits (lid recycling)
The machine design is simple, reasonable structure, convenient operation, small footprint.

3. Process:

Recycling bins → Manual on-line pulling cap barrel → → → transport → Online outer brush automatic bucket conveyor → → → automatic washing eight barrels to the next filling station → → automatic capping automatic filling light inspection → → transport → sleeve → Hot winders certificate → → sticky to finished products off the production line.
