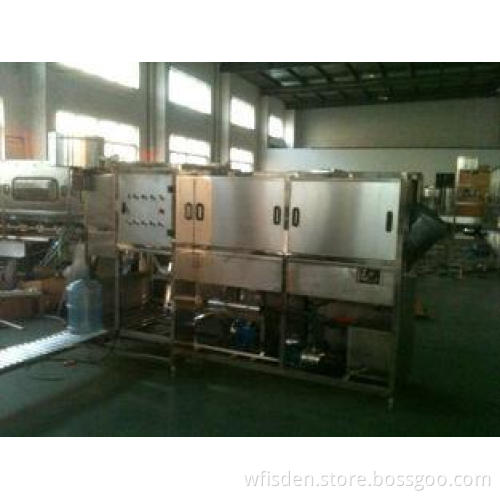

380V , 50HZ , 1.5KW 5 Gallon Water Filling Machine For Buck

380V , 50HZ , 1.5KW 5 Gallon Water Filling Machine For Bucket , 100 - 120 barrels/hour

1.The main technical parameters:
a) Number of filling heads: 1
b) Filling capacity: 5 gallons
c) Bucket Dimensions: ¢ 276 * 490
d) Production capacity :100-120 barrels / houre
Power supply: 380V, 50HZ, power consumption 1.5KW, because each unit of electricity intermittently start, it is only normal working hours 1.0KW.
f) flushing process: two disinfectant, two sterile water, a drip.
g) Gas source: Pressure 0.5-0.6mpa, gas consumption is 0.17 cubic meters / minute (user-supplied air compressor)
h) Dimensions: 3050 * 700 * 1900 (linear)
i) Weight: Approx 0.35T

2.outline:

This machine is designed for 5 gallons barreled drinking water production line core equipment, mineral water, distilled water, pure water production the ideal equipment. The whole machine adopts high quality 304 stainless steel, corrosion-resistant, easy to clean. Main electrical originals PLC using Mitsubishi, Omron, gas originals using domestic brands. Inside and outside the nozzle are imported technologies. The device is compact, high efficiency and stability, quick action is correct, high degree of automation, is the Trinity barreled automatic machine electrical equipment.


3.Barreled production line configuration list:
