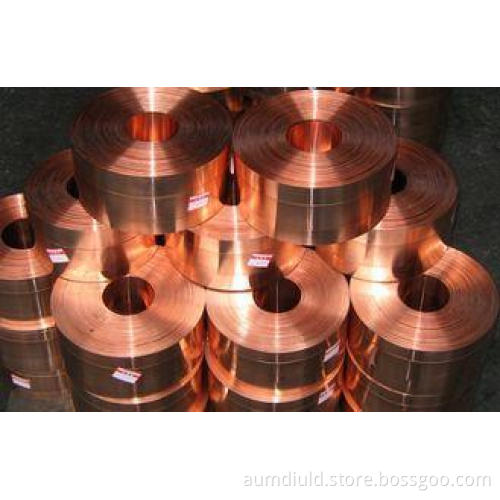

High Precision Electrical Exchanger Transformer Copper Strip With C1100 0.01mm - 2mm
Quick Detail:
|
Standard Range of Coppers and Copper Alloys Manufactured |
|
|
coppers |
CDA 10200,11000 and 12200 Best Sales Item |
|
Radiator |
CDA 14000 series |
|
Lead frame |
CDA 19210 new and best |
|
Plain Brassed |
CDA 20000 series |
|
Phosphor Bronzes |
C51000, C51010, C51110, C52100, and C52400 |
|
Nickel Silvers |
CDA 73000 to 77000 |
Description:
Specifications of Transformer Copper Strip:
1. Grade: C1100 , C1020
2. Thickness: 0.005mm- 1.2mm
3. Width: 400mm max
4. Chemical Composition: C1100: Cu >99.90%
C1020: Cu >99.96%
C1220: Cu >99.97%; P 0.015-0.04%
5. Oxygen content: C1100: O < 500PPM
C1020: O < 50PPM
6. Temper: O, 1/4H, 1/2H, H
O: HV<70; 1/4H: HV 65-85; 1/2H: HV 80-100; H: HV >100
7. Electric 20°C Conductivity: C1100/C1020 >97%; C1220 >80%
|
Item |
nominal thickness |
|||||||||
|
Double shiny |
Single (double) matte |
Super matte |
||||||||
|
8µm |
9µm |
12µm |
15µm |
20µm |
10µm |
12µm |
10µm |
12µm |
||
|
Area Weight (g/m2) |
70~75 |
85~90 |
100~105 |
128~133 |
175~181 |
95~100 |
105~110 |
95~100 |
105~110 |
|
|
Tensile Strength (kg/mm2) |
Normal temperature |
≥30.0 |
≥30.0 |
≥30.0 |
≥30.0 |
≥30.0 |
≥25.0 |
≥25.0 |
≥25.0 |
≥25.0 |
|
Elongation (%) |
Normal temperature |
≥5.0 |
≥5.0 |
≥5.0 |
≥6.0 |
≥8.0 |
≥2.5 |
≥2.5 |
≥3.0 |
≥3.0 |
|
Roughness Rz(µm) |
≤3.0 |
negotiable |
||||||||
|
Thickness (µm) |
(-0;+3) |
negotiable |
||||||||
|
Oxidation resistance (160°C/10min) |
No oxidation and discoloration |
|||||||||
Applications for Copper Foil:
1. Electric and electric springs, switches
2. Lead frames
3. Connectors and oscillation reeds
4. PCB field
5. Communication cable
6. Cable armoring
7. Mobile phone main board
8. Ion battery production lamination with PI film
9. PCB collector (electrode backing) materials
