300kg/H PP/PE Film Washing Line/Plastic Recycling Machine
- Payment Type:
- L/C, T/T, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Jiangsu |
|---|---|
| Payment Type: | L/C, T/T, Western Union |
Product Description
Product Description

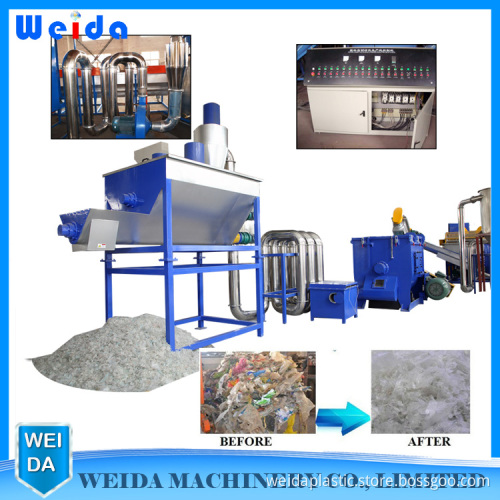

PP/ PE film Washing Line
(Output: 300kg/hr)
(1)Equipment name: PP/PE recycling machinery
(2)Production capacity: 300-2000kg/h
(3)Material processed: PP/PE film,woven bag
(4)Main usage: This plant is used to remove dirty film,
wash them,dry flakes,then get the clean and dry film flakes.
(5)Superiority: Easy operation, high capacity, low energy consumption, safety,
reliability, etc.
(6) Cleaned material: Impurity content<=0.1%; Water content<=5%
(7) Production Capacity: can reach 3000kg/h (if without label remover machine).
Summarize
1. Electricity power use :380V/50Hz/3phase
2. Material: waste PE /PP film
3. Final size of scraps: mesh screen: φ60mm and 20mm
4. Output: >300Kg/hour
Zhangjiagang Weida Machinery Co., ltd
Professional manufacture of plastic machine
Miss Nelly Guo
Tel: 86-512-67236151 Fax: 86-512-67236152
Mobile: 86-13862027738
Add: ShuangFeng Road, Zhaofeng Industrial Zone, Leyu Town, Zhangjiagang city
| No | Equipment name | Technical parameter | Qty. |
| 1 | Convey belt | This machine mainly used to convey the PE/PP film into Plastic crusher 1. Motor power:1.5KW 2. Width of convey belt :600mm 3. Install isolation stick against-slide on the surface of the belt. 4. Adjust Height of conveying belt freely. 5. Small moving wheels are flexible and convenient. |
1set |
| 2 | Plastic Crusher | This machine will crush the PE/PP film 1. Motor power: 37kw 2. Mesh screen:φ60mm and 20mm (note totally two set) 3. Rotation diameter of Main shaft:φ600mm 4. length of main shaft:800mm 5. Feeding inlet: 800mm×700mm 6. Quantity of rotating blade:6pcs 7. Quantity of fixed blade:4pcs 8. Crushing with water Process 9. Capacity: >300Kg/hour 10: cover opening way: electric motor drive 11. Plastic crusher will work with water process 1) the bearing will be with water cooling function |
1set |
| 3 | High speed screw friction washer | This machine will used to friction wash the film scraps into the next step 1. Effective length:3500mm 2. Screw diameter: φ380mm 3. Capacity: >300 kg/hour 4. Motor power: 7.5kw 5.Material for contact with material: Stainless steel304 6. Speed of rotation : 600rpm Note that: 1. on the top , there is water spray for the film 2. for bottom parts will be with 2 meter in length for screen mesh to take dirty water as more as possible |
1set |
| 4 | Floating washer | This machine is mainly used to clean the rest dirty on the surface of film scraps 1. Effective length: 4500mm, Width: 1300mm 2. Washing roller motor: 2.2KW 3. Screw Feeding motor: 2.2KW 4. Qty of pushing roller : 3 set 5.Material for contact with material: Stainless steel 304 6. The floating washing tank with automatic dirty discharge motor : 1.1kw 8. The diameter of discharge pipe : 159mm Note that : the floating washing tank will be including one set of screen mesh on the top of bottom screw . |
1set |
| 5 | Screw feeder | This machine will used to send the film scraps into the next step 1. Effective length:2500mm 2. Screw diameter: φ300mm 3. Screw length: 2500 mm 4. Capacity: 300-500 kg/h 5. Motor power: 2.2kw 6.Material for contact with material: Stainless steel 304 |
1set |
| 6 | Dewatering machine | This machine mainly used to dewater for film scraps to get final good quality film scraps 1.Motor power: 45KW 2.Capacity : >300kg/h 3. Motor speed: 2000rpm 4. The diameter of the screen hole: 2mm 5. The thickness of screen mesh : 3mm 6. The dewatering rate: more than 95% 7. Continuously discharge the material from side and drainage from the bottom of this machine 8. Material for contact with material: Stainless steel304 9. Motor of Auto-brushing clean system :1.1kw 10. The material of Main shaft :stainless steel :diameter 220*8mm(Thickness) 11. The material of blade :stainless steel ,thickness:6mm 12. Rotation Diameter of main shaft: 650mm |
1set |
| 7 | Hot air drying system and air blower | This machine is mainly used to use hot air to remove the moisture from PP/PE scraps 1.Total length of stainless steel pipe : 18meter 2.The diameter of stainless steel pipe : 159mm 3.Heating power of heating box : 30Kw 4.The temperature is adjustable by temperature controller 5. The Moisture of PP/PE will be less than 5% 6.Power of air blower motor: 7.5Kw |
1set |
