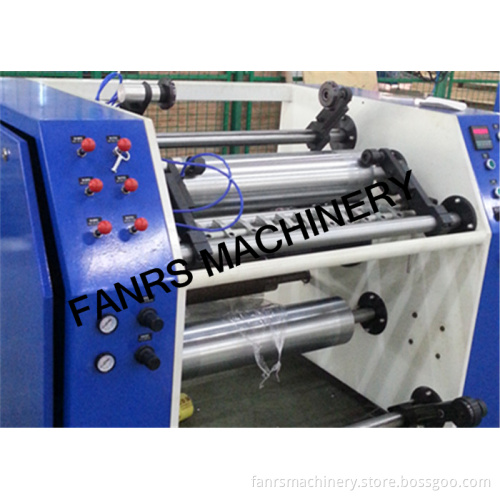

Stretch Film Rewinding Machine

Stretch Film Rewinding Machine



Introduction:

Our FM-R500 Automatic Rewinding Machine specially used for rewinding the industrial stretch film/cling film. It can rewind the large diameter rolls into many same width small diameter finished rolls. The appearance of finished goods could be looked better with high automotive ability and easy operation, hence, the working efficiency could be improved a lot with less man power.

Features:

1. PLC+HIM+Inverter control system, high degree of automation;
2. Man-machine interface and manually input interface display, easy to opertate,
Easy troubleshooting;
3. Automatic down tube, replace the core, cutting and blanking;
4. Configuration belt(optional), can be a single person to operate the machine to complete the job and finished paking;

Specification:


Model--------------------------------FM-R500
Width of Mother Roll-----------------300-500mm
Width of Finished Roll---------------300-500mm
Diameter of Mother Roll--------------350mm
Diameter of Finished Roll------------150mm(Maximum)
Core of Mother Roll------------------3''
Core of Finished Roll----------------3'' 2'' 1.5''
Speed--------------------------------0-1000 meters/min
Power--------------------------------5.5 Kw
Weight-------------------------------950 Kg
Dimension----------------------------1100*1350*1500mm
