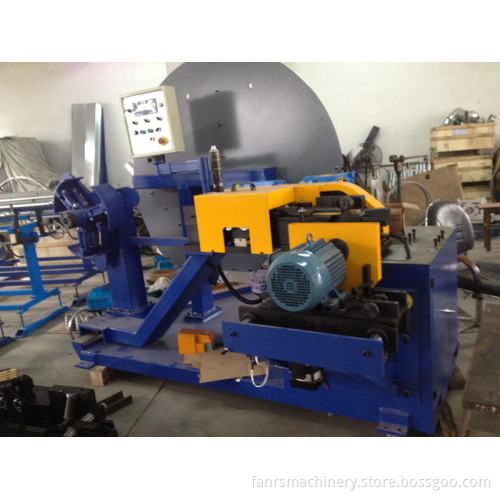

F1500c Downpipe Forming Machine

F1500C Downpipe Forming Machine


Usage and Feature:
The idea machine is suitable for making spiral tube, pipe, duct widely used in all kinds of industrial.

- Fully auto material feeding, forming (seaming), lubrication and tube cutting.

-With length safety system, auto stop when pass setting length.

-With ideal flying slitter, no noise and hot sparks, pipe end smooth and neat.

-Adopt photoelectric tracking system.

-Completed with Mitsubishi PLC Control and Transformer from Japan, speed could be adjusted.

-With emulsified liquid instead of oil lubrication system, pipe & duct not impossible to wash so that saves time and labor.

-Different mould to meeting respective request, just change mould to make various diameter.

-Complete with meter cutting length control, meter could be controlled and
Calculated; When reach set meter, could slit automatically.

-Complete with all safety features, with emergency stop button.

-Completed with safety cover to keep operator, when cover open, machine stop automatically.

-Fix mould and strip mould workable

Main Technical Specification:

-Finished Product Diameter 80 - 1500mm

-Max. Unwinding Diameter 1200mm

-Max. Unwinding Roller Loading 1000kg

-Material Thickness 0.4 -1.0mm (Galvanized steel)
0.4mm-0.6mm (Stainless steel)
0.4-1.0mm (Aluminum)

-Max. Material Width 140mm

-Cutting way roll shears

-Lock Way Outer (inner also available)

-Max. Speed 50m/min

-Control System PLC (Mitsubishi)

-Voltage 380V/50Hz (three phase)

-Main Motor 5.5kw

-Weight 2500kg

-Machine dimension (LxWxH) 3750mm*2000mm*2600mm.

Finished Products:


CE Certificate:
