F2020 2mm Thickness Air Round Spiral Duct Forming Machine with Auto Alarm and Urgent Stop

F2020 2mm Thickness Air Round Spiral Duct Forming Machine With Auto Alarm And Urgent Stop


Usage and Feature:

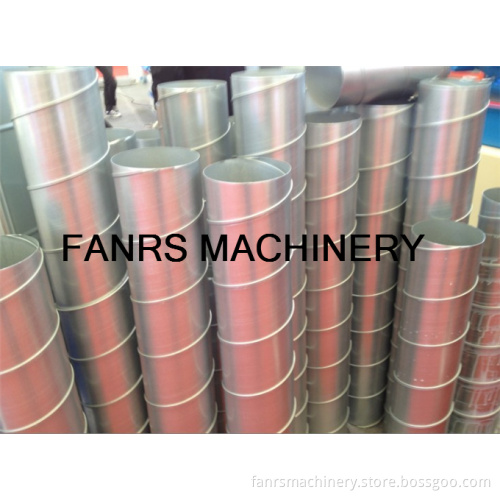

Our latest patent and the most advanced Spiral Tubeformer Machine, which can make tube & pipe up to 2500mm, material thickness up to 2mm. It's the most idealist spiral duct machine to making tube, pipe, duct etc.
- Fully auto material feeding, forming, lubrication, cutting, tube loading
-Built with Mitsubishi PLC control panel and frequency converter, speed could be adjusted.
-With lubrication system, could lubricate automatically.
-Tension controlled by air pressure, auto brake.
-With air and hydraulic pressure system, save power.
-According to European standard, speed adjusted by pneumatic brake, which
Could be unanimous & synchronous
-With auto counting system and photoelectric tracking, pipe quantity could be counted.
-Different mould to meeting respective request, just change mould to
Make various diameter.
-Complete with meter cutting length control, meter could be controlled and
Calculated; When reach set meter, could slit automatically.
-Combination of both Western & Asian Technologies on complete production and control.
-Complete with all safety features, auto alarm and urgent stop.



Main Technical Specification:
-Finished Product Diameter-------------80 - 2500mm
-Max. Unwinding Diameter---------------1200mm
-Max. Unwinding Roller Loading --------3000kg(3 jumb rolls)
-Material Thickness -------------------0.4 -2.0mm (Galvanized steel)
---------------------------------------0.4-1.2mm(Stainless steel)
---------------------------------------0.4-2.0mm (Aluminum)

-Max. Material Width ------------------140mm
-Cutting way---------------------------flying slitting
-Lock Way -----------------------------Outer(inner also available)
-Max. Speed ---------------------------65m/min
-Control System -----------------------PLC (Mitsubishi)
-Voltage ------------------------------380V/50Hz (three phase)
-Main Motor ---------------------------33kw
-Weight -------------------------------2950kg
-Machine dimension (LxWxH)-------------3000mm*1900mm*1710mm
