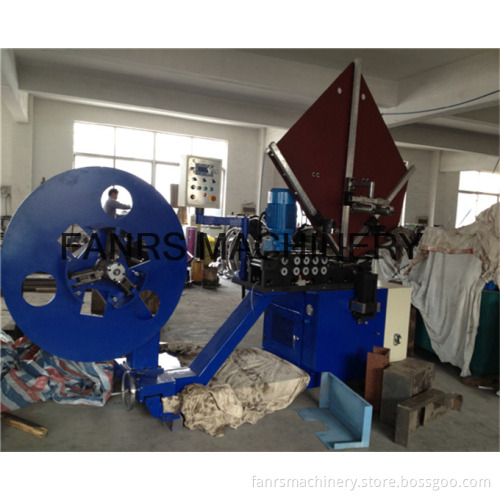

F1600 Touch Screen Spiral Tube Forming Machine Without Noise and Sparks, Tube End Smooth and Neat

F1600 Touch Screen Spiral Tube Forming Machine Without Noise And Sparks, Tube End Smooth And Neat


Usage and Feature:
The idea machine is suitable for making spiral tube, pipe, duct widely used in all kinds of industrial.
-Fully auto material feeding, forming (seaming), lubrication and tube cutting.
-With length safety system, auto stop when pass setting length.
-With ideal flying slitter, no noise and hot sparks, pipe end smooth and neat.
-Adopt photoelectric tracking system.
-Completed with Mitsubishi PLC Control and Frequency Converter from Japan, speed could be adjusted.
-With emulsified liquid instead of oil lubrication system, pipe & duct not impossible to wash so that saves time and labor.
-Different mould to meeting respective request, just change mould to make various diameter.
-Complete with meter cutting length control, meter could be controlled and
Calculated; When reach set meter, could slit automatically.
-Complete with all safety features, with emergency stop button.
-Completed with safety cover to keep operator, when cover open, machine stop automatically.


Main Technical Specification:
-Finished Product Diameter-------------80 - 1600mm
-Max. Unwinding Diameter---------------1200mm
-Max. Unwinding Roller Loading --------1000kg
-Material Thickness -------------------0.4 -1.3mm (Galvanized steel)
---------------------------------------0.8mm(Stainless steel)
---------------------------------------0.4-1.2mm (Aluminum)

-Max. Material Width ------------------140mm
-Cutting way---------------------------flying slitting
-Lock Way -----------------------------Outer(inner also available)
-Max. Speed ---------------------------80m/min
-Control System -----------------------PLC (Mitsubishi)
-Voltage ------------------------------380V/50Hz (three phase)
-Main Motor ---------------------------11kw
-Weight -------------------------------3000kg
-Machine dimension (LxWxH)-------------3050mm*2000mm*1710mm
