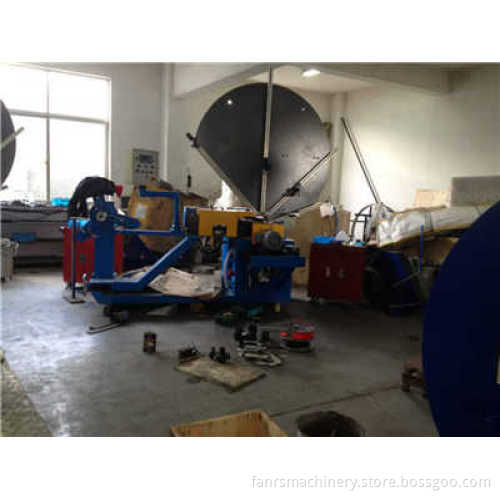

F1500A Spiral Duct Forming Machine

F1500A Spiral Duct Forming Machine(Manufacturer)


Usage and Feature:
The idea machine is suitable for making spiral tube, pipe, duct widely used in all kinds of industrial.
-Fully auto material feeding, forming (seaming), lubrication and tube cutting.
-With length safety system, auto stop when pass setting length.
-With ideal flying slitter, no noise and hot sparks, pipe end smooth and neat.
-Adopt photoelectric tracking system.
-Completed with Mitsubishi PLC Control and Frequency Converter from Japan, speed could be adjusted.
-With emulsified liquid instead of oil lubrication system, pipe & duct not impossible to wash so that saves time and labor.
-Different mould to meeting respective request, just change mould to make various diameter.
-Complete with meter cutting length control, meter could be controlled and
Calculated; When reach set meter, could slit automatically.
-Complete with all safety features, with emergency stop button.
-Completed with safety cover to keep operator, when cover open, machine stop automatically.
Main Technical Specification:
-Finished Product Diameter 80 - 1500mm
-Max. Unwinding Diameter 1200mm
-Max. Unwinding Roller Loading 1000kg
-Material Thickness 0.4 -1.0mm (Galvanized steel)
0.4mm-0.6mm (Stainless steel)
0.4-1.0mm (Aluminum)

-Max. Material Width 140mm
-Cutting way roll shears
-Lock Way Outer (inner also available)
-Max. Speed 50m/min
-Control System PLC (Mitsubishi)
-Voltage 380V/50Hz (three phase)
-Main Motor 5.5kw
-Weight 2500kg
-Machine dimension (LxWxH)
