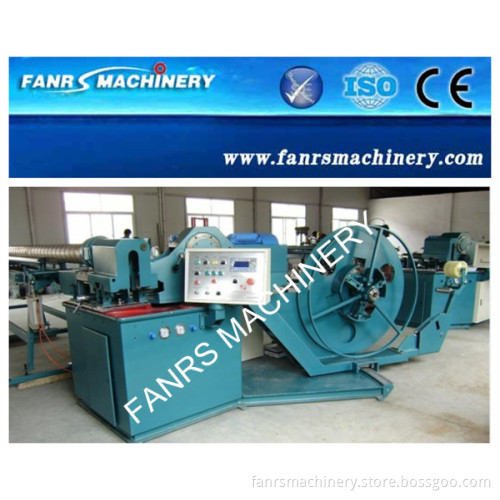

PLC Controlled Automatic Spiral Tube Forming Machine

PLC Controlled Automatic Spiral Tube Forming Machine


Usage and Feature:

The idea machine is suitable for making spiral tube, pipe, duct widely used in all kinds of industrial.

- Fully auto material feeding, forming, lubrication, cutting, tube loading

-Built with Mitsubishi PLC control panel and transformer, speed could
Be adjusted.

-Spiral angle could be adjusted automatically.

-With lubrication system, could lubricate automatically.

-Tension controlled by air pressure, auto brake.

-With air and hydraulic pressure system, save power.

-According to European standard, speed adjusted by pneumatic brake, which
Could be unanimous & synchronous

-With auto counting system and photoelectric tracking, pipe quantity could be counted.

-Adopt European advantage technical, speed can reach 80m/min.

-With ideal flying slitter, no noise and hot sparks, pipe end smooth and neat.

-Different mould to meeting respective request, just change mould to
Make various diameter.

-Complete with meter cutting length control, meter could be controlled and
Calculated; When reach set meter, could slit automatically.

-Combination of both Western & Asian Technologies on complete production and control.

-Complete with all safety features, auto alarm and urgent stop.


Main Technical Specification:
-Finished Product Diameter 80 - 1600mm

-Max. Unwinding Diameter 1200mm

-Max. Unwinding Roller Loading 1000kg

-Material Thickness 0.4 -1.3mm (Galvanized steel)
0.8mm (Stainless steel)
0.4-1.2mm (Aluminum)

-Max. Material Width 140mm

-Cutting way flying slitter

-Lock Way Outer (inner also available)

-Max. Speed 80m/min

-Power 11kw

-Voltage 380V/50Hz (three phase)

-Weight 3000kg

-Machine dimension (LxWxH) 3050mm*2000mm*1710mm.
