Product Description

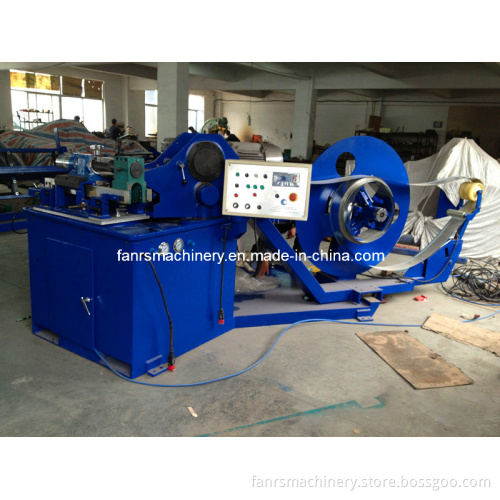

CNC Spiral Tube Forming Machine

Usage and Feature:

The idea machine is suitable for making spiral tube, pipe, duct widely used in all kinds of industrial.
- Fully auto material feeding, forming, lubrication, cutting, tube loading

-Built with Mitsubishi PLC control panel and transformer, speed could
be adjusted.

-Spiral angle could be adjusted automatically.

-With lubrication system, could lubricate automatically.

-Tension controlled by air pressure, auto brake.

-With air and hydraulic pressure system, save power.

-According to European standard, speed adjusted by pneumatic brake, which
Could be unanimous & synchronous

-With auto counting system and photoelectric tracking, pipe quantity could be counted.

-Adopt European advantage technical, speed can reach 80m/min.

-With ideal flying slitter, no noise and hot sparks, pipe end smooth and neat.

-Different mould to meeting respective request, just change mould to
make various diameter.

-Complete with meter cutting length control, meter could be controlled and
Calculated; when reach set meter, could slit automatically.

-Combination of both Western & Asian Technologies on complete production and control.

-Complete with all safety features, auto alarm and urgent stop.

Finished Products:
CNC Spiral Tube Forming Machine

Main Technical Specification:

-Finished Product Diameter               80 - 1600mm

-Max.Unwinding Diameter                1200mm

-Max.Unwinding Roller Loading           1000kg

-Material Thickness                      0.4 -1.3mm (Galvanized steel)
0.8mm (Stainless steel)
0.4-1.2mm (Aluminum)

-Max.Material Width                     140mm

-Cutting way                            flying slitter

-Lock Way                               Outer (inner also available)

-Max.Speed                              80m/min

-Power                                  11kw

-Voltage                                 380V/50Hz (three phase)

-Weight                                 3000kg

-Machine dimension (LxWxH)              3050mm*2000mm*1710mm.

CE Certificate:
CNC Spiral Tube Forming Machine
