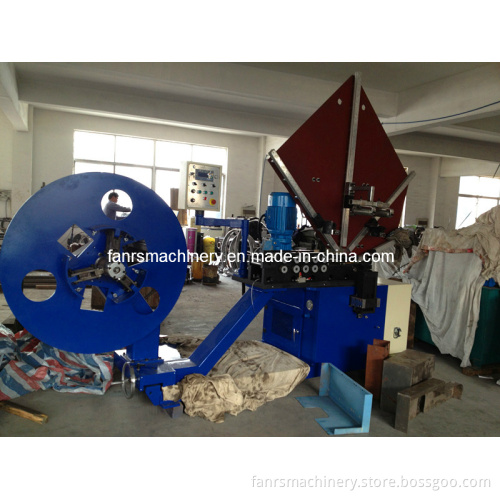

2014 Top Sale Spiral Tube Forming Machine

Usage and Feature:
The idea machine is suitable for making spiral tube, pipe, duct widely used in all kinds of industrial.

- Fully auto material feeding, forming (seaming), lubrication and tube cutting.

-With length safety system, auto stop when pass setting length.

-With ideal flying slitter, no noise and hot sparks, pipe end smooth and neat.

-Adopt photoelectric tracking system.

-Completed with Mitsubishi PLC Control and Transformer from Japan, speed could be adjusted.

-With emulsified liquid instead of oil lubrication system, pipe & duct not impossible to wash so that saves time and labor.

-Different mould to meeting respective request, just change mould to make various diameter.

-Complete with meter cutting length control, meter could be controlled and
Calculated; when reach set meter, could slit automatically.

-Complete with all safety features, with emergency stop button.

-Completed with safety cover to keep operator, when cover open, machine stop automatically .

Main Technical Specification:


-Finished Product Diameter               80 - 1500mm

-Max.Unwinding Diameter                1200mm

-Max.Unwinding Roller Loading           1000kg

-Material Thickness                      0.4 -1.0mm (Galvanized steel)
0.4mm-0.6mm (Stainless steel)
0.4-1.0mm (Aluminum)

-Max.Material Width                     140mm

-Cutting way                            roll shears

-Lock Way                              Outer (inner also available)

-Max.Speed                             50m/min

-Control System                         PLC (Mitsubishi)

-Voltage                                380V/50Hz (three phase)

-Main Motor                             5.5kw

-Weight                                  2500kg

-Machine dimension (LxWxH)               3750mm*2000mm*2600mm.

Finished Products:
