Product Description

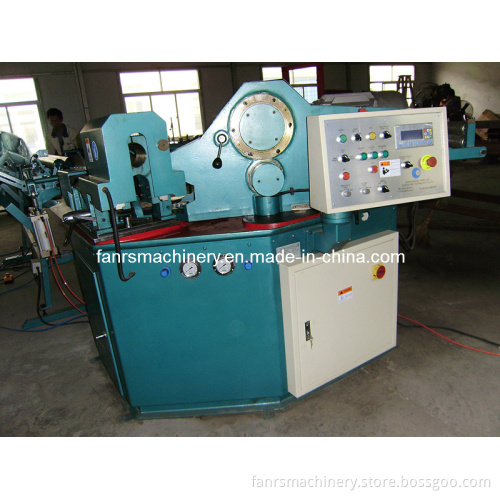

Industrial Spiral Tube Machine for Stainless Steel, Galvanized Steel , Aluminum Spiral Duct Forming

Usage and Feature:
Our latest patent and the most advanced Spiral Tubeformer Machine, which can make tube & pipe up to 2500mm, material thickness up to 2mm. It's the most idealist spiral duct machine to making tube, pipe, duct etc.

- Fully auto material feeding, forming, lubrication, cutting, tube loading

-Built with Mitsubishi PLC control panel and transducer, speed could be adjusted.

-With lubrication system, could lubricate automatically.

-Tension controlled by air pressure, auto brake.

-With air and hydraulic pressure system, save power.

-According to European standard, speed adjusted by pneumatic brake, which
Could be unanimous & synchronous

With auto counting system and photoelectric tracking, pipe quantity could be counted.

-Different mould to meeting respective request, just change mould to
make various diameter.

-Complete with meter cutting length control, meter could be controlled and

- Calculated; when reach set meter, could slit automatically.
- Combination of both Western & Asian Technologies on complete production and control.
-Complete with all safety features, auto alarm and urgent stop.

Main Technical Specification:

-Finished Product Diameter               80 - 2500mm

-Max.Unwinding Diameter                1200mm

-Max.Unwinding Roller Loading           3000kg(3 rolls)

-Material Thickness 0.4 -2mm (Galvanized steel)
0.4-1.2mm (Stainless steel)
0.4-2.0mm (Aluminum)

-Max.Material Width                     140mm

-Cutting way                            flying slitter

-Lock Way                              Outer (inner also available)

-Max.Speed                             65m/min

-Power                                 33kw

-Voltage                                380V/50Hz (three phase)

-Weight                                 2950kg

-Machine dimension (LxWxH)              3000mm*1950mm*1710mm.

Finished Products:
