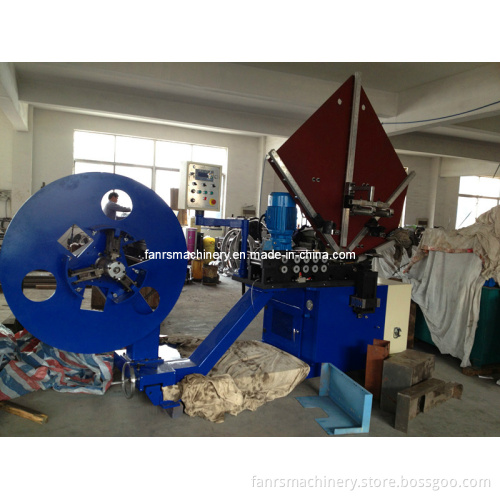

F1500b Galvanized Steel Spiral Duct Machine

Get Latest Price

Payment Type:: T/T, Money Gram, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu China(Mainland)
Payment Type:	T/T, Money Gram, Western Union

Product Description

F1500B Galvanized Steel Spiral Duct Machine

Usage and Feature:
The idea machine is suitable for making spiral tube, pipe, duct widely used in all kinds of industrial.

- Fully auto material feeding, forming (seaming), lubrication and tube cutting.

-With length safety system, auto stop when pass setting length.

-With ideal flying slitter, no noise and hot sparks, pipe end smooth and neat.

-Adopt photoelectric tracking system.

-Completed with Mitsubishi PLC Control and Transformer from Japan, speed could be adjusted.

-With emulsified liquid instead of oil lubrication system, pipe & duct not impossible to wash so that saves time and labor.

-Different mould to meeting respective request, just change mould to make various diameter.

-Complete with meter cutting length control, meter could be controlled and
Calculated; when reach set meter, could slit automatically.

-Complete with all safety features, with emergency stop button.
-Completed with safety cover to keep operator, when cover open, machine stop automatically .

Main Technical Specification:

-Finished Product Diameter              80 - 1500mm

-Finished Product Length                120-8000m

-Max.Unwinding Diameter                1200mm

-Max.Unwinding Roller Loading           1000kg

-Material Thickness                      0.4 -1.0mm (Galvanized steel)
0.4mm-0.6mm (Stainless steel)
0.4-1.0mm (Aluminum)

-Max.Material Width                     140mm

-Cutting way                            saw cutting

-Lock Way                              Outer (inner also available)

-Max.Speed                              50m/min

-Control System                          PLC (Mitsubishi)

-Voltage                                 380V/50Hz (other also available)

-Main Motor                              5.5kw

-Cutting Motor                            4kw

-Weight                                  2250kg

-Machine dimension (LxWxH)               3200mm*1900mm*2600mm.

Finished Products:
