Spiral Duct Former (Manufacturer)

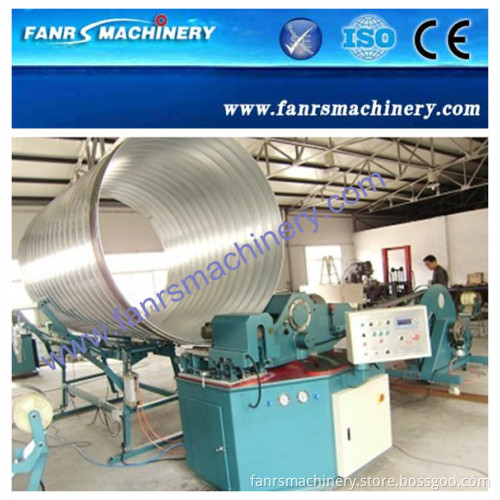

F1600 Spiral Duct Former (Manufacturer)

Usage and Feature:
The idea machine is suitable for making spiral tube, pipe, duct widely used in all kinds of industrial.

1. Fully auto material feeding, forming, lubrication, cutting, tube loading

2. Built with Mitsubishi PLC control panel and frequency converter, speed could
be adjusted.

3. Spiral angle could be adjusted automatically.

4. With lubrication system, could lubricate automatically.

5. Tension controlled by air pressure, auto brake.

6. With air and hydraulic pressure system, save power.

7. According to European standard, speed adjusted by pneumatic brake, which Could be unanimous & synchronous.

8. With auto counting system and photoelectric tracking, pipe quantity could be counted.

9. Adopt European advantage technical, speed can reach 80m/min.

10. With ideal flying slitter, no noise and hot sparks, pipe end smooth and neat.

11. Different mould to meeting respective request, just change mould to
make various diameter.

12. Complete with meter cutting length control, meter could be controlled and Calculated; when reach set meter, could slit automatically.

13. Combination of both Western & Asian Technologies on complete production and control.

14. Complete with all safety features, auto alarm and urgent stop.

Main Technical Specification:

Finished Product Diameter----------------80 - 1600mm

Max.Unwinding Diameter-------------------1200mm

Max.Unwinding Roller Loading-------------1000kg

Material Thickness-----------------------0.4 -1.3mm (Galvanized steel)
-----------------------0.8mm (Stainless steel)
-----------------------0.4-1.2mm (Aluminum)

Max.Material Width----------------------140mm

Cutting way-----------------------------flying slitter

Lock Way ------------------------------Outer (inner also available)

Max.Speed------------------------------80m/min

Power----------------------------------11kw

Voltage--------------------------------380V/50Hz (three phase)

Weight---------------------------------3000kg

Machine dimension (LxWxH)--------------3050mm*2000mm*1710mm.
