Fe1200 Elbow Machine Hydrualic Elbow Machine Gore Locker with Double Station for HAVC

FE1200 Elbow Machine Hydrualic Elbow Machine Gore Locker with Double Station for HAVC


Quick Detail:
BrandFANRS
Model No. FE1200
Max Forming Speed120m/min
Working PositionTwo(Double) Positions
Drive ControlHydraulic System




Applications:
- The hydraulic machine is for pipe, tube and duct etc undercutting and seaming; Its ideal edging machine and locking machine.
- Making elbow for duct/tube/pipe connectors


Description:
The hydraulic machine is for pipe, tube and duct etc undercutting and seaming; Its ideal edging machine and locking machine.

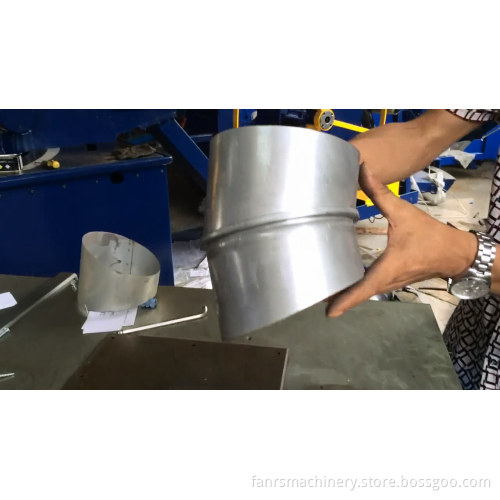

- After plasma cutter cutting the duct, roll bending the segment into round pipe, and stitch welder joint the seam; It's the time for the elbow machine to lock the male and female together.
Adapt import hydraulic control system, operation steady and smooth.

- Built with emergency button, operation and working safety.

- Completely double-working position, rimming and locking could be making in one machine.

- Duct and Pipe forming in two shapes.

- Duct perfect swage, without leakage



Specifications:

Electrical: 380V/3pH/50Hz
Total power: 5KW
Hydraulic oil: 55 L
Consumption of compressed air: 75L/hour 6har
Max. Forming speed120m/min
Diameter range: 125-1250mm
Net weight: 750kg
Material: (Thickness ) mm
Black steel: 0.4-1.5
Galvanized steel: 0.4-1.5
Stainless steel: 0.4-1.0
Aluminum: 0.4-1.5




Production time: 1PC ¢ 200mm 90. CElbow 1.5min
Weight: 750kg
Packaging Size: 1400*800*900


Competitive Advantage:

1. We are machines manufacture sale directly
2. High Quality with reasonable price
3. We provide the technical support all lifelong
4. We have CE, ISO, SGS
