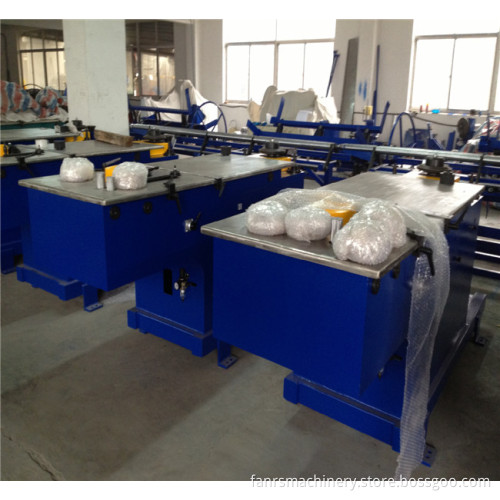

Air Tube Elbow Forming Machine

Air Tube Elbow Forming Machine

Usage:
-The hydraulic machine is for pipe, tube and duct etc undercutting and seaming; Its ideal edging machine and locking machine.
-After plasma cutter cutting the duct, roll bending the segment into round pipe, and stitch welder joint the seam; It's the time for the elbow machine to lock the male and female together.
Features:
-Adapt import hydraulic control system, operation steady and smooth.
-Built with emergency button, operation and working safety.
-Completely double-working position, rimming and locking could be making in one machine.
-Duct and Pipe forming in two shapes.
-Duct perfect swage, without leakage


Technical data:

Electrical: 380V/3PH/50Hz
Total power: 5KW
Hydraulic oil: 55 L
Consumption of Compressed air: 75L/hour 6har
Max. Forming speed: 120m/min
Diameter range: 125-1250mm
Material (Thickness ) mm
Black steel: 0.4-1.5
Galvanized steel: 0.4-1.0
Stainless steel: 0.4-1.5
Aluminum: 0.4-1.5
Weight: 750kg
Packaging Size: 1400*800*900
