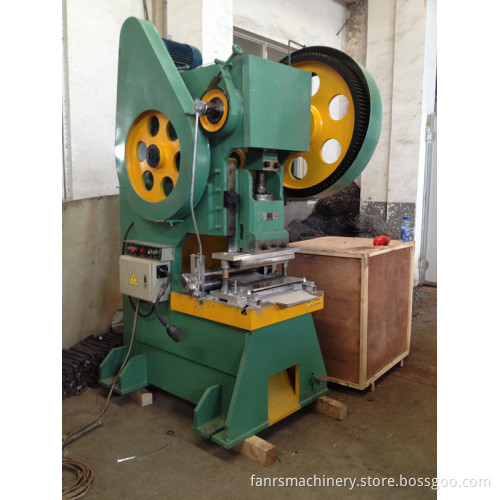

Aluminum Foil Roll Box Sawtooth Binding Fixing Machine

Aluminum Foil Roll Box Sawtooth Binding Fixing Machine


Usage and Feature:
-FA-450 Metal Blade Fixing Box Machine is used to bind and fix the metal on the aluminum foil roll color box; With this machine, not available to buy finished metal blade, just to buy jumbo roll material.
-Feeding, cutting and fixing full automatically.
-Low cost and high production.
-With safeguard system to keep operator safety.

Main Technical Data:


Maximum Material Thickness 0.4mm
Maximum Cutter Width 500mm
Color Box Unfold Width 125-400mm
Production Speed 30-35 PCS/min
Main Motor 4kw
Power Supply & Voltage 380V/50Hz (Three-phase)
Maximum Pressure 45T
Slide block 100mm
Machine Dimension (LxWxH) 2000X1000X1800mm
Total Weight2500 kg
