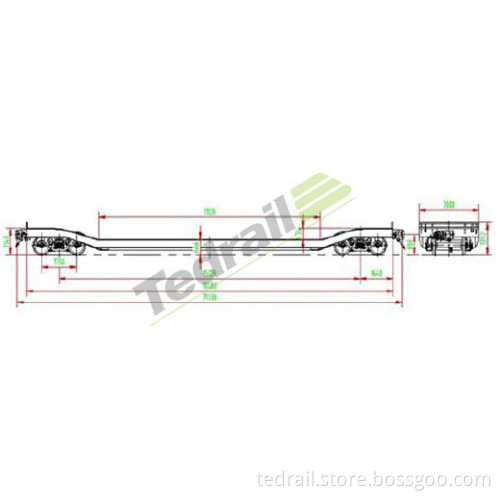

Depressed Center Flatcar

Specification
Loading capacity (t) 40-50
Tare weight (t) 31-35
Axle load (t) 21
Height from floor to track top(empty car)(mm) 666
Length of supporting surface of floor (mm) 11120
Height from top of rail to coupler center (mm) 880
Min radius of curvature (m) 145
Max run speed (km/h) 120
Description
The depressed center flatcar series products are developed and made by our works. Its underframe is the welded structure of all steel. The end plates at both ends of underframe can open and close and act as the cab aprons, which can automatically transit cargo. The car can meets the requirements of special cargo passing through tunnels and bridges at unlimited speeds, mainly for transporting large and long cargo on standard tracks. The cargo cannot be transported by general-purpose wagons because their profile exceeds limits and center of gravity is out of heights. In addition, it can also carry other goods such as automobiles. It has the features and advantages of high efficiency, high speed, convenience, safety and save package etc, for loading and unloading fast and binding to fasten cargo.
