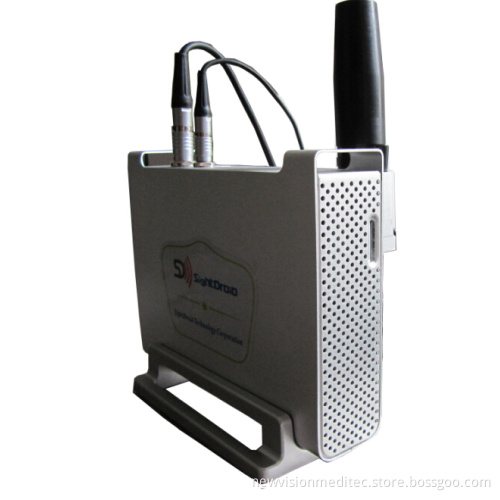

Portable Ultrasound Ab Scan

Portable Ophthalmic Ultrasound A and B scannerUSB typeB scanFrequency: 10MHz/20MHz (optional), Magnetic driven, noiselessScanning Mode: Sector ScanningMagnify: Multi continuous magnification, Real-Time magnificationResolution: Lateral ≤ 0.3mm; Vertical≤ 0.2mmGeometry position precision: Lateral ≤ 10%; Vertical≤ 5%Depth: 60mmEnhance the part of vitreous body and retinaGain of probe: 30dB-105dBScanning Angle: 53° Gray Scale: 256False Color: Multi colors. OCTMeasurement type: Multigroup distances, perimeters and areasImage postprocessing: Multiple curves processing, Pseudo-color processing curveMovies: 100 images movie review, AVI JPG format image outputA scan: Frequency: 10MHz, with LEDDepth: 40mmPrecision: ± 0.05 mmMeasurement: Anterior chamber depth, lens thickness, vitreous body length, total length and averageEye mode: Phakic / Aphakic / Dense / Various IOLIOL Formula: SRK-II, SRK-T, HOFFER-Q, HOLLADAY, BINKHORST-II, HAIGISStat. Calculation: Average and standard deviationStore: 10 Scanning results for each eyeOthers: Display Mode: B, B+B, B+A, AHint: Preset keywordCase Search: Multi-keywordsWorking Platform: Windows XP, VISTA, WINDOWS7User-defined report template
