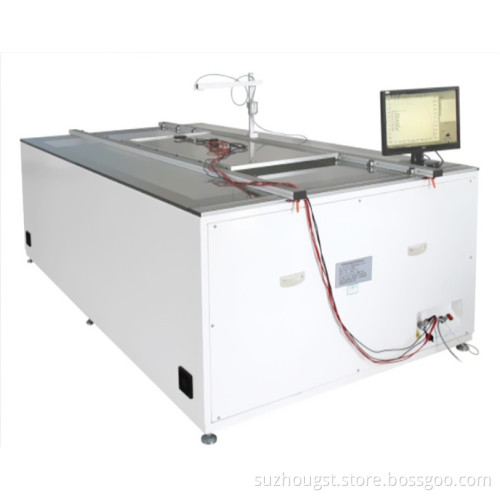

Industrial PV Solar Module IV Tester Sun Simulator

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou, Jiangsu, China
Payment Type:	L/C, T/T

Product Description

Introdution

AV6581 Solar Module IV Tester is mainly used for final testing of solar panels production, can also be used before lamination, which can greatly improve the encapsulation yield at a time. This tester is suitable for a variety of battery components such as single crystal, polycrystal and thin film etc. can test the parameters of I-V curve, P-V curve, short circuit current and open circuit voltage, peak power.

The tester is a constant pulse system based on simulated sunlight by xenon lamp. Xenon lamp light source goes through twice filter, spectral distribution has reached IEC60904-9 A level requirements.

The tester is composed of sun simulator, software, infrared temperature measuring probe and guide rail and so on, has visual interface. The whole test process is completed by control circuit automatically.

Advantages

Fast test speed, high precision, intuitive test results.

PLEASE CONTACT US FOR FURTHER INFORMATION

Model		AV6581
Sun Simulator	Max Testable Area		2, 000*1, 100mm
	Lamp Type		Long-arc Xenon Lamp
	Lamp Lifetime		300, 000 Times
	Light Intensity Range		200W/m2~1, 200W/m2
	Spectrum Mismatching Degree		Better than ± 15%
	Irradiation Instability		Better than ± 0.5%
	Irradiation Unevenness		Better than ± 2%
	Working Method		Once/ Twice Flash
	Pulse Width		10ms
Data Acquisition Unit	Voltage Range		1V\10V\50V\100V
	Current Range		0.25A\1A\2.5A\10A
	Resolution Ratio of Current & Voltage		0.025%
	Max Power Measurement Repeatability		Better than ± 0.5%
	Single Measurement Time		1s
	Min Test Interval		5s
	Handling Capacity Test		360pcs/h
Power Supply	Type		Single Phrase, AC198V-242V, 50Hz
	Max Power Consumption		3KW
	Average Power Consumption		1KW
Dimension	LWH		2, 620× 1, 500× 910mm
	Weight		700kg
Working Condition	Operating Temperature		0-55 Celsius
	Storage Temperature		-25-75 Celsius
	Relative Humidity		5-95%
	Work Environment		No corrosive gas
