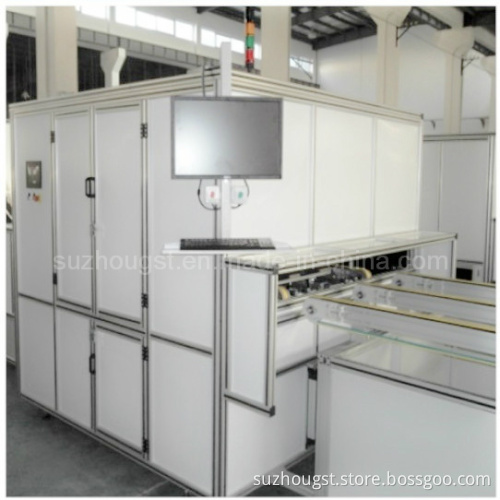

Automatic Solar Panel Module EL Tester with The Highest Pixel

Automatic Solar Panel Module EL Tester with The Highest Pixel

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou, Jiangsu
Payment Type:	L/C, T/T

Product Description

Have the Highest Pixel reaching up to 29 million

Introduction

This Equipment is mainly used for solar module defect detection and special test for production process control , to test whether solar cells have material defects, sintering defects, process pollution, slivers and inferior pieces etc. or not.

Specifications:

1. Control Mode: PLC+PC
2. Power Supply: AV220V 50Hz Single Phrase
3. Intensity of Air Pressure: 6-8kg/cm2

4. Air Pressure: 0.4~0.6Mpa

Warranty

One year of free services and repairs.

Customization offered.

Name	Solar Cell Module EL Tester
Resolution Ratio	1.4 million pixels 1300*1024	6 million pixels 2048*1300	8.3 million pixels 3326*2504	16 million pixels 4928*3246	29.5 million pixels 6576*4384
Test Imaging Time	5-10 sec
Test Period	30-40 sec			32-42 sec	30-40 sec
Detector Manufacturer	Japan SONY		German Customization		Japan Customization
Detector Category	Cold Light CCD			SLR Camera	Cold Light CCD
Image Surface Noise	Slight		NO	Slight	NO
Management Software	Independent R&D Chinese-English Recognition and Management Software. Automatic image saving, query, statistics,printing etc.
Defects Type	Process Pollution\Material Defects\subfissure\fragment\Broken Bars\Faulty Soldering\Low Efficiency etc.
Tested Module Type	Solar Cell Module/Battery String/(monocrystal/polycrystal/thin film)
Tested Module Size	Standard Size:1000MM*2000MM(Customized Service Can Be Offered)
Current & Voltage	0-20A,0-100V (Programmable Power Supply)
Work Environment	Temperature: 15-40 Celsius Humidity: 10-75%
