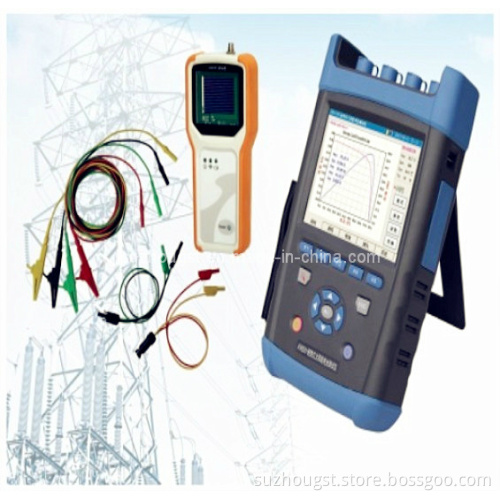

Outdoor Portable PV Solar Cell Module IV Tester

Outdoor Portable PV Solar Cell Module IV Tester

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou, Jiangsu
Payment Type:	L/C, T/T

Product Description

Introduction

Portable Solar Cell tester is mainly used for outdoor solar array/module volt-ampere test and has been the essential testing tools of the power plant construction units, quality inspection departments, manufacturers, research institutes etc.

Functions

1.Test the performance characteristics of solar array or solar module under the natural light fast and conveniently and
2. Provide test security for solar power station design, acceptance check and maintenance.
3. This tester, coming with test probes for environment temperature, solar panels temperature and irradiance detection, can record tested environment state in an all-round way.

Advantages:

1. The mainframe of the tester adopts portable design, have dustproof and waterproof functions.
2. It employs color LCDs visible under high light condition or sunlight to meet the needs of field work.
3. The mainframe adopts WINDOWS operating interface to show test results directly and clearly, providing users with first-class operation experience.

Basic Parameters

Probe Box Unit Features	Environment Temperature Detection Range	-20~100 Celsius
	Battery Temperature Detection Range	-20~100 Celsius
	Temperature Test Accuracy	±1 Celsius
	Irradiance Test Range	0~1800W/m2
	Irradiance Test Accuracy	Better than ±3%
	Communication Interface with Mainframe	RS232 Series Port, Bluetooth
	Dimension(mm)	L166W83H33
	Weight	450g
	Power Supply	4-Cell AAA Battery
Mainframe Features	Power Supply	Built-in Lithium Battery/Power Adaptor
	Battery Type	14.8V/4400mAH
	Battery Power-on Time	15h (Spare Battery Replaceable, provide longer Stand-by Time)
	Dimension(mm)	L296W186H75
	Weight	2.2kg
	Operating Temperature	-10~50 Celsius
	Storage Temperature	-20~60 Celsius
	Relative Humidity	5~95%
Major Test Index	AV6591	AV6592
Voltage Range	5-1000V	0-50v 0-200v
Voltage Test Accuracy	0.1V	0.01V
Voltage Test Difference	+/-1% +/-0.2V	+/-0.5% +/-0.1V +/-1% +/-0.1V
Current Range	0.1-12A	0.01-10A 0.01-20A
Current Test Accuracy	0.001A	0.001A
Current Test Accuracy	+/-1% +/-0.02A	+/-0.5% +/-0.01A +/-0.1% +/-0.01A
Max Power Test Repeatability	+/-1% +/-5W	+/-0.5% +/-1W
Max Power Test Range	50W-10KW	0W-100W
Max Power Accuracy Switching to STC	+/-5% +/-1W	+/-5% +/-1w
