650PCS/H Full Automatic Solar Cell Stringer

Depending on the advanced process technology, high quality and timely after-sale service, we are devoted to reducing labor cost and enhancing cell module efficiency for customers.

Function Introduction

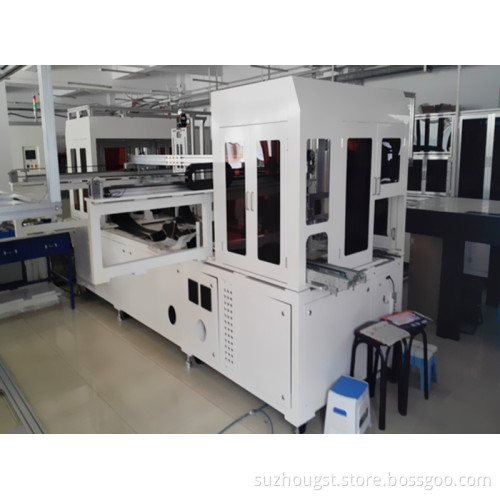

SCH-1400 is a fully automatic stringing machine for solar cell soldering. It can automatically achieve solar cell double-station loading, ribbon placing, cutting and unloading of soldered cell strings trough dual-channel. The machine has a high productivity with a good and stable soldering performance.

Installation and Debugging Condition
1) Occupation of Land: 5800mm(L)× 2100mm(W)× 1900mm(H)
2) Power Supply: 380V, 50HZ, three phase five wire
3) Power: About 15KW at start, about 8KW under normal operation
4) Gas Consumption: 0.9m³ /min
5) Air compression, 0.6MPa
