Product Description

Introduction

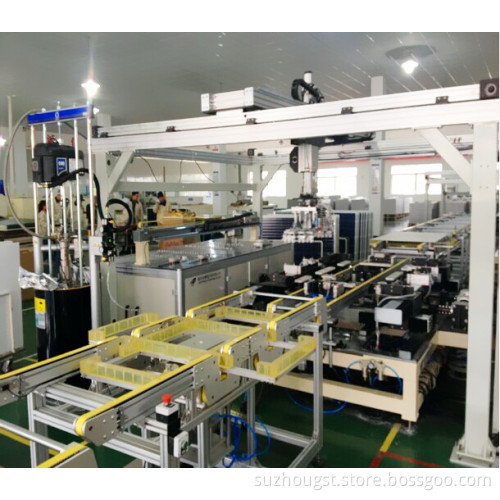

Automatic Solar Module Gluing and Framing Machine is used to assemble solar module automatically.

Characteristics:

1. Automatic gluing
2. With servo motor as a power source, it can precisely control position, pressure
3. Guarantee the size precision of assembled modules
4. Change module specifications dispensing with moving mechanical parts, simply need to enter the size of modules, convenient and quick.
5. Labor saving, improve the quality of automatic framing

Contact us for further information.

Remark:
We provide customized service according to the requirements of customers.

Name	Solar Module Gluing & Framing Machine
Model	GST-ZKJ-00
Power Supply	AV220V 50Hz 30A Single Phrase
Power	6.5KW
Air Pressure	0.4Mpa-0.6Mpa
Relative Humidity	20%-90%
Ground Bearing	1000KG/m2
Ground Flatness	± 10mm
Control Mode	PLC + Touch screen
Applicable Size	L1500-2100, W880-1200, H2-45 mm
Production TAKT	35-40s
Feeding Method	Long side feeding/short side feeding
