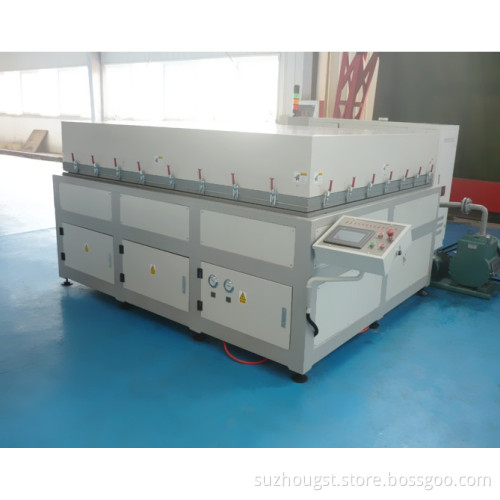

Semi-Automatic PV Solar Module Lamination Machine

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou, China
Payment Type:	L/C, T/T

Product Description

Applicability:
1. Applicable to general industrial and laboratory environment. Altitude <2000m.
2. Be able to laminate and cure. Components with high compatibility.
3. Can continuously work for 24 hours.

Name	Semi-automatic PV Solar Cell Module Laminator
Model	GST-22*22
Parameters	Dimension	3000× 2550× 1250mm	Weight	5.0T
	Power Supply	AC380V 3 phrase 4 wires	Compressed Air Pressure	0.4 ~ 0.8MPa
	Compressed Air Flow	0.2 ~ 0.3M3/min	Effective Lamination Area	2200mm× 2200mm
	Height of Lamination Cavity	25mm	Total Power	30KW
	Normal Working Power	8-15KW	Pump-down Speed of Vacuum Pump	30L/S
	Control Platform	Touch Screen	Highest Heating Temperatrue	180 Celsius
	Heating Platform	Uneveness Degree≤ 300um/M2	Operating Temperature	100 ~ 165 Celsius
	Whole Heating Platform	Temperature Uneveness Degree ≤ ± 2 Celsius	Precision of Temperature Control	± 1 Celsius
	Temperature Control Range	30 --180 Celsius	Ceiling Temperature	180 Celsius
	Operating Temperature Range	Indoor Temperature-180 Celsius	Lamination Time	According to materials
	Pump-down Time	5 ~ 8min	Vacuum Degree	100 ~ 15Pa
	Open Mode	Back Cover Open	Safeguarding After Opening	Self-locking crank
