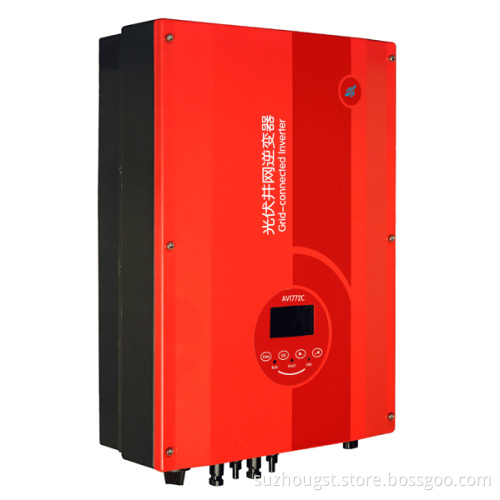

Single Phase PV Solar Energy Grid-Connected Inverter

Major Characteristics:

1. Using double MCU control chip redundancy design, more secure.
2. Two-way independent MPPT control, the MPPT efficiency > 99.9%.
3. No transformer isolation design, high conversion efficiency, light weight.
4. Remote alarm functions.
5. High precision of grid tracking and frequency response
6. Wide voltage range MPPT input, wide range of power grid adaptability.
7. Low harmonic current, high power factor, high conversion efficiency.
8. Advanced and reliable anti-islanding detection technology, impeccable self check of breakdown.
9. LCD graphic display, multi-language interface to choose from.
10. Event storage and historical record query, PC monitoring system can be saved.
11. Can set protection and operation parameters.
12. High environmental adaptabiliy(25-60 Celsius, IP65 protection class)
13. Direct insertion type waterproof input/output terminals, secure and quick installation.

Safety Features

Protection function: Islanding protection, the polarity reverse protection, DC over/under-voltage protection, AC over/under-voltage, output short circuit protection, over temperature protection, square array ground protection, leakage protection, etc.

Standard: CNCA/CTS0004-2009A, CNCA/CTS0006: 2010, IEC62109-1: 10, IEC62109 -2: 2011, VDE0126-1-1 / A1, CE, AS4777, NEW CEI 0-21, G83 / G59, C10 / C11.
