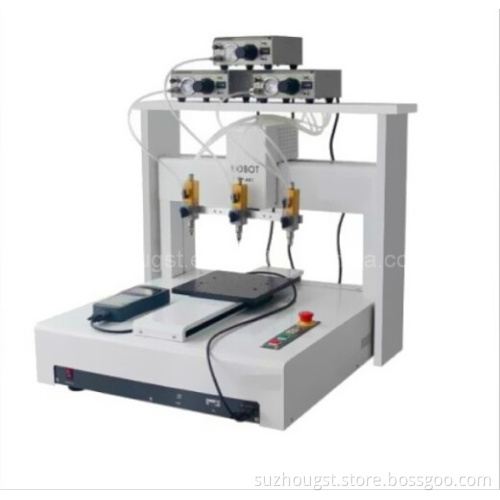

Automatic Junction Box Glue Dispensing Machine

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou, China
Payment Type:	L/C, T/T

Product Description

Use

It is applied in solar module production line to dispense glue automatically onto junction box before assembling junction boxes onto solar modules.

Automatic Junction Box Glue Dispensing Machine

Feature

1. Increase the efficiency and save the glue.
2. High capacity: single gluing volume≥100cc.
3. High precision:±0.5%.
4. Automatic gluing.
5. Delievery time:30 working days.

Service

12 months warranty. After one year, annual maintenance contract can be signed to extend the service time.

Sample size	Max. 2200mm; Min 400mm
Glue type	Tonson 1527, 200L
Resolution	20 micron
Repeatability	50 micron
Acceleration	0.2g
Max. speed	500mm/s
Mechanical configuration	bump+auto table+patent system
control	serve motor
Drive system	conveyor
Tool payload	5kg
Frame set loading	SIEMENS PLC
Dispense control	pressure and time control
Dispense pump system	Graco
Cycle time	175w components/28s
Dispense nozzle	6 nozzles at a time
Max speed	450mm/s
Width×Depth×Height	2900× 1400× 1850 mm
Weight	1000kg
Sensors	Omron
Foot print area(L×w)	2900×1400mm
Power consumption	0.6kw
