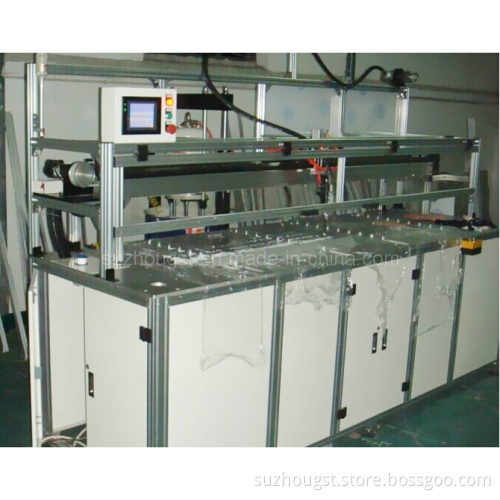

Automatic Solar Module Aluminium Frame Gluing Machine

Get Latest Price

Payment Type:: L/C, T/T, D/P

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou, China
Payment Type:	L/C, T/T, D/P

Product Description

Introduction

Solar module gluing machine is mainly used for dispensing silica gel into solar module frame. Parameters setting, such as acceleration, deceleration, uniform velocity, displacement and so on, and programming is available through visual interface. The equipment can reduce the waste of manual gluing, improve the quality of gluing and evenness of gluing, and save raw materials. Suitable for modules of L1500-2000, W880-1200, H35-50 mm.

Equipment Composition

1. Lifting Mechanism
1.1 The mechanism is composed by lifting air cylinder, electromagnetic valve, transmission platform etc.
1.2 Steady operation, put frame in place in a certain position.
2. Positioning Mechanism
The mechanism is composed by locating pin, fixed block etc.
3. Gluing Mechanism
3.1 The mechanism is composed by pneumatic device, glue barrel, glue pump, glue gun etc. .
3.2 The mechanism dispenses the silica gel inside the glue barrel into aluminum frame.
4. Control System
The mechanism is composed by circuit board and so on. Realize glue switch control and glue quantity control.
5. Machine Framework
The mechanism is composed by aluminum product, Acrylic plate etc., play the role of fixation and stabilization.
6. Safety Sealing Plate
The safety sealing plate is metal covering, used to cover moving parts to protect staff from hurting when the equipment is running (Optional).

Content Item	Environment Index
Equipment Power Requirements	Voltage	220VAC±10%
	Power	1KW
	Phase	Single phase
Autocontrol Power Requirements	Voltage	220VAC±10%
	Frequency	50Hz±1%
	Phase	Single phase
Site Requirements	Ground Bearing	1000KG/m2
Site Requirements	Flatness	±10mm
Air Source	Air Pressure, Flow	6-8kg/cm2, 1m3/min
