20m X 45m Beach Luxury Wedding Tent for 600 People with Round Tables

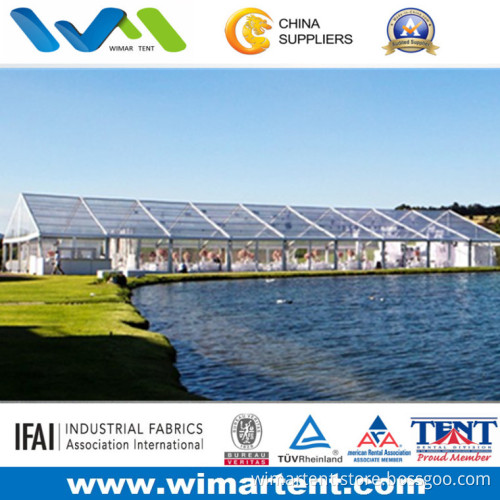

20m span transparent wedding tent


Clear-span width: 20m
Eave height: 4m
Ridge height: 7.2m
Roof pitch: 18°
Bay distance: 5m
Minimum Tent Length 20m
Maximum Tent Length No limit
Main framework material: 203X110X4mm
Eave / corner connection: Corners and spine with steel plates connected
Max. Allowed wind speed to DIN: 100km/h
Wind Load: 0.5KN/m²
Flooring options Woodenfloor with timber and steel sub-construction Aluminium cassettefloor with plywood or full aluminiumboards
Cover 650-900G/M2 PVC-coated polyester textile, flame retardant to DIN 4102 B1 M2
Special design By using woodenfloor with steel subconstruction and weights anchoring can be omitted

Suzhou Wimar Tent Co., Ltd. Is aluminum structure tent factory, professional in manufacturing, design, selling and provides rental of sports events, exhibitions, fairs, outdoor wedding celebration party, reception, outdoor promotion, product launch, festival. We do clear span from 3m to 60m marquee.


Party tent
1. Span width: 3m / 6m / 8m / 10m / 12m / 15m / 18m / 20m / 21m / 25m / 30m / 35m / 40m / 50m/60m;
2. Bay distance: 3m / 5m, no length limit;
3. Frame Pole and Beam: High Reinforce Aluminum/ Anti-rust surface;
4. PVC Coated Polyester: Total weight 850G/ ( for Roof ) and 650G/ Full UV Protection, Flame retardancy B1, Waterproof;
5. Fixed Method: Expand Screw (Fixed on the concrete ground) / Ground Anchor (Fixed on the grass land and sandy ground)/ Weight Plate (Portable Fixed Style).

Product Application
Party tent / pavilion tent / outdoor tent / marquee tent / event tent / exhibition tent / Wedding tent / pagoda tent/ gazebo te

Optional Accessories:
Ground anchor, anchor puller, weight plate, glass door, fire door, glass wall, ABS hard wall, lining, flooring system, clear PVC windows, ramp, transport rack etc
