High Peak Marquee Party Tent 20' X 20'

20ft x 20ft family garden tent


Size: 6m by 6m
Eave height: 2.5m
Ridge height: 5.7m
Main framework material: 65x65x2.5mm
Max. Allowed wind speed to DIN: 80km/h
Wind Load: 0.3KN/m²
Flooring options Woodenfloor with timber and steel sub-construction Aluminium cassettefloor with plywood or full aluminiumboards
Cover 650-900g/m2 PVC-coated polyester textile, flame retardant to DIN 4102 B1 M2

Suzhou Wimar Tent Co., Ltd. Is aluminum structure tent factory, professional in manufacturing, design, selling and provides rental of sports events, exhibitions, fairs, outdoor wedding celebration party, reception, outdoor promotion, product launch, festival. We do clear span from 3m to 60m marquee.

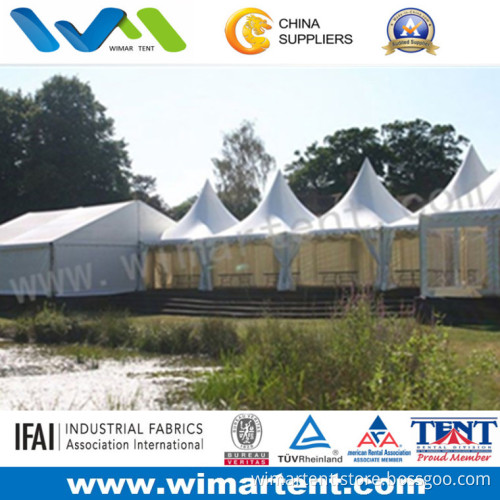

Pagoda tent
1. Size: 3mX3m, 4mX4m, 5mX5m, 6mX6m, 8mX8m, 10mX10m, 12mX12m
2. Frame Pole and Beam: High Reinforce Aluminum/ Anti-rust surface;
3. PVC Coated Polyester: Total weight 850G/ ( for Roof ) and 650G/ Full UV Protection, Flame retardancy B1, Waterproof;
4. Fixed Method: Expand Screw (Fixed on the concrete ground) / Ground Anchor (Fixed on the grass land and sandy ground)/ Weight Plate (Portable Fixed Style)

Optional Accessories:
Ground anchor, anchor puller, weight plate, glass door, fire door, glass wall, ABS hard wall, lining, flooring system, clear PVC windows, ramp, transport rack etc
