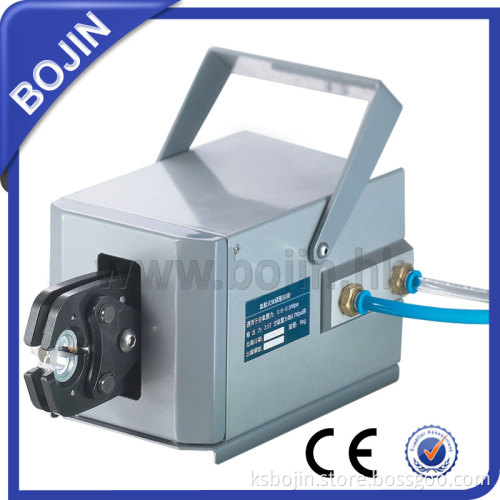

Cable Crimp End Terminal Machine (BJ-603E)

Specifications
Cable Crimp End Terminal  Machine BJ-603E
Crimping range: Non-insulated terminal 0.5-50mm²
Output:2.5T


Cable Crimp End Terminal  Machine BJ-603E
Crimping range: Non-insulated terminal 0.5-50mm²
Air pressure range: 0.6-1Mpa
Output:2.5T
Voltage range: AC 220V
Weight: 6kg
Overall dimension: 286*125*165mm

1. Place the crimping terminal in the corresponding crimping die sets
2. Place the stripped wires into the terminals, step down the foot air valve, and release the air valve after the completion of the crimping
3. When replacing the crimping die sets, the air source shall be shut off to avoid the risk caused by the screws using screwdriver
4. Replace with the required crimping die sets, and then fasten the screws again



We Provide
Best products and factory price.
On-time delivery and the shortest delivery time.
1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.
OEM and customized service.
User manuals will go with relative machines.
Service
QC: All products will be checked before delivery.
Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers.
Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
Operation Guidance: If you have any problem with operation, please feel free to contact us.
