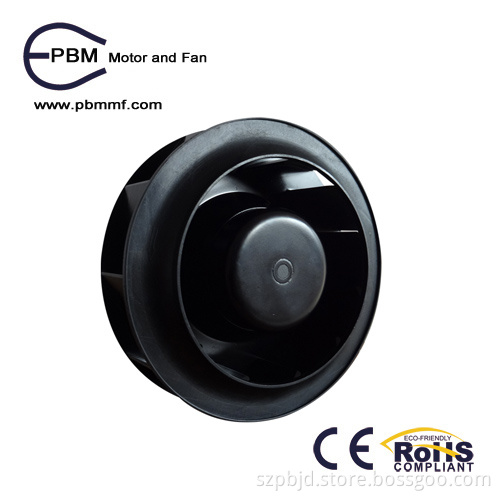

220mm Centrifugal Fan Ec

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou
Payment Type:	L/C, T/T

Product Description

Centrifugal Exhaust Fan
Demensions: 220mm*105mm
Impeller Material: Propylene with glass-fiber reinforced,
Sheet-matel plate
Mounting Position: Any
Surface of rotor: Coated in black;
Package: 4PCS/carton, 112PCS/pallet
Rated voltage: 230V AC
Frequency: 50/60 Hz
Rated power: 80 W
Rated current: 0.4 A
Rated speed: 3, 030 rpm
Airflow: 898.7 M3/hour
Air pressure: 519.7 PA
Noise: 69 dBA
Control input: 0 to 10V DC/PWM, tach output
Locked-rotor protection and reverse polarity
Current limited and soft start
Insulation class: B
Protection grade: IP44
Operating temperature: -25 to +60C
Lifespan: 50, 000 at room temperature
Weight: 1.4 kg
Standards:
LVD EN 60950-1
EMC EN 61000-6-3, EN 61000-4-2 and EN 61000-4-3
