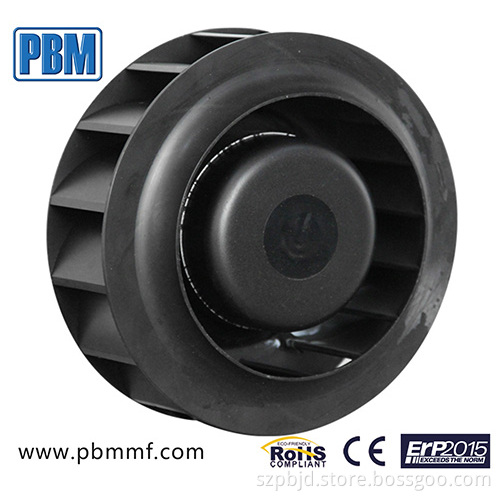

Ec Centrifugal Fan with 190 Impeller
- Payment Type:
- L/C, T/T, Negotiable
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Suzhou |
|---|---|
| Payment Type: | L/C, T/T, Negotiable |
Propylene with glass-fiber reinforced,
Ingection-moulded round sheet-metal plate
Control input 0~10VDC/PWM, tach output,
Locked-rotor protection, reverse polarity ,
Current limited, soft start.
Motor Type :
EC brushless external rotor motor
Insulation Class: B
Protection Type: IP44
LVD EN 60950-1
EMC EN 61000-6-3, EN 61000-4-2
EN 61000-4-3,EN61000-4-8.
Operating Temperature:
-25~+60
Weight:1.37kg
FAQ:
1.How about the delivery time?
Within 25 days after we receive the order.
2.What kind of payments do you support?
T/T.L/C ,other kinds please contact with us.
3.What's the MOQ?
Generally speaking ,the MOQ is 100 pieces .Different products have different MOQ, Please contact with us.
4.Transportation
All available shipping ways could be applied, by courier, air or sea. Appointed shipping company or our own forwarders all could be used in shipment. Full-way tracking the cargos for you before the goods arrive.
5.Global Market
Depending on advanced technology and knight service, we establish a good and diligent team and keep nice business relationship with a large amount of worthy clients in global market. We are prepared to provide the best DC Axial Fan to clients at competitive price. In addition to control of cost and quality, our stipulated lead-time, variety of designs, capability of product development and flexibility of service bring convenience and value added services to the clients.
6.Contact Us
We highly appreciate your any enquiry by email, fax or instant message. We will reply your email or fax within 12 hours. Please fell free to call us at any time if there is any questions.
Specifications:
Operating Temperature |
-25 degrees to 60 degrees |
Storage Temperature |
-40 degrees to 75 degrees |
Operating Humidity |
5% to 90% RH |
Storage Humidity |
5% to 95% RH |
Drop Test |
In minimum packaging condition fan withstand each one drop of three faces from 30cm distance height onto 10mm thickness of wooden board. |
Vibration Test |
Sine Wave. Displacement amplitude: 0.75mm(Equivalent 10G). Frequency Range: 10Hz~55Hz / 30 sec. 55Hz~10Hz / 30 sec Linear Scanning 120 Cycle Endurance timer per axis: 2 Hours Orientation: X,Y,Z. |
Shock Test |
Apply peak acceleration 50g and keep duration of the pulses for 11ms(Half sine wave). |
Dustproof Test |
Temperature range: degrees to 35 degrees. 2.5mm diameter metal wire cannot go through the gap between rotor cup and base . Follow IEC 60592 IP4X. |
Waterproof Test |
Temperature range: 15 degrees to 35 degrees and duration of test: at least 10 minutes, to dripping water from 15°Vertically. Follow IEC 60529 IPX4 |
RoHS |
All the material meets RoHS standard. |
