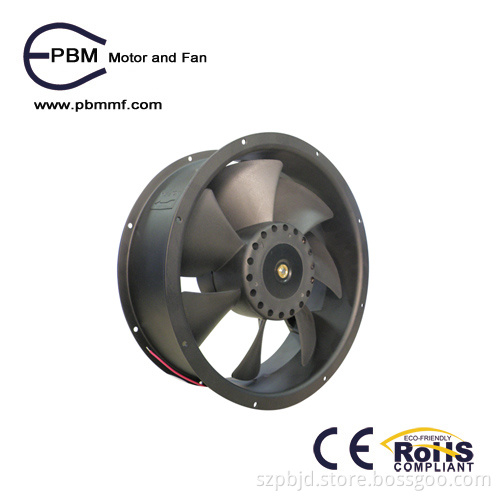

DC Axial Fan-215mm

Get Latest Price

Payment Type:: L/C, T/T, Negotiable

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou
Payment Type:	L/C, T/T, Negotiable

Product Description

Rated voltage: 24/48V DC
Rated current: 4/2 A
Rated power: 91 W
Rated speed: 3, 100 rpm
Airflow: 1, 512 M3/hour
Air pressure: 190 PA
Noise: 69 dBA
Control input: 0 to 10V DC/PWM, tach output
Locked-rotor protection and reverse polarity
Current limited and soft start
Insulation class: B
Protection grade: IP44
Operating temperature: -25 to +60° C
Lifespan: 50, 000 at room temperature
Weight: 2.1 kg
Standards:
LVD EN 60950-1
EMC EN 61000-6-3, EN 61000-4-2 and EN 61000-4-3.
