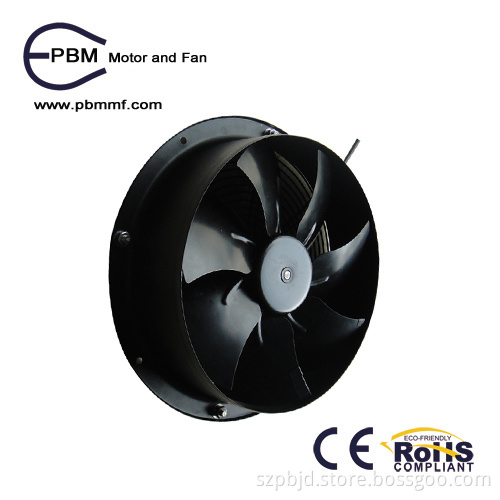

Axial Fan 365*90mm

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou
Payment Type:	L/C, T/T

Product Description

Axial Fan Impeller
Demension: 365mm*90mm
Frame Material: Aluminum Alloy
Surface of Rotor: Coated in black
Mounting Position: Any
Pacage: 1PCS/carton, 54PCS/pallet
Rated voltage: 48V DC
Rated current: 2.5 A
Rated power: 120 W
Rated speed: 2, 000 rpm
Airflow: 2, 330 M3/hour
Air pressure: 316 PA
Noise: 65 dBA
Control input: 0 to 10V DC/PWM, tach output
Locked-rotor protection and reverse polarity
Current limited and soft start
Insulation class: B
Protection grade: IP44
Operating temperature: -25 to +60C
Lifespan: 50, 000 at room temperature
Weight: 3.2 kg
Standards:
LVD EN 60950-1
EMC EN 61000-6-3, EN 61000-4-2 and EN 61000-4-3
