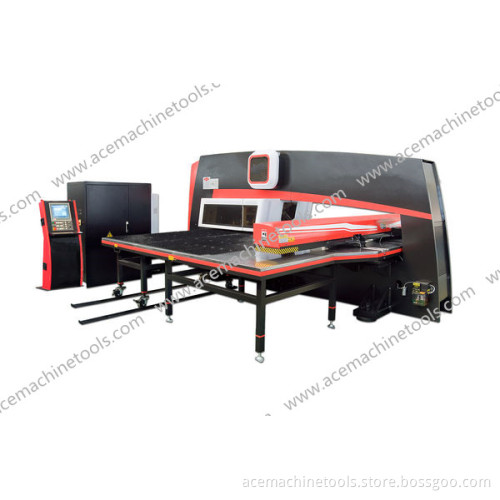

Single-Servo CNC Turret Punch Press (AMT-300E)

The main technical parameters
Product Description
Servo motor driven machine without hydraulic oil. It falls into the scope of environmental protection machine.

Main driving motor only works during punching and does not consume any power during other status. Energy saving obviously.

It is featured with adjustable RAM stroke and speed together with stable PUP.

Compact structure with beautiful figuration. High automatization. Easy and convenient operation and maintenance with reliable performance.

The large lead ballscrew and linear guideway of high precision are equipped for driving.

The first-class CNC system with digital altemating servo motor ensures the precision.

The inlay turret of high precision owns the long servicel life, the layout of the turret can be made into 24 nos. Or 32 nos. For customer selection.

The imported pneumatic, hydraulic and electric components ensure the perfect quality.
After the advanced process and heat treatment, the service life of the tooling has been extended to a large extent.

Adopting worm-wheel and worm mechanism of high precision. The auto-index, whose max. Diameter is F88.9mm, can be extended.

Central lubrication system decreases the friction of each moving pairs and increases the service life of the machine.

Integrated beam structure with integrated design of carriage and beam ensures the strong rigidity and high accuracy of positioning together with the high reliability of feeding. The dynamic deflection of X and Y axis is prevented.

Flexible configuration with long or short tooling can be selected according to the customer requirement.

The integral structure of beam and carriage enhances the rigidity and precision.

Remark: The theroat depth of the machine can be designed into 1500mm.
