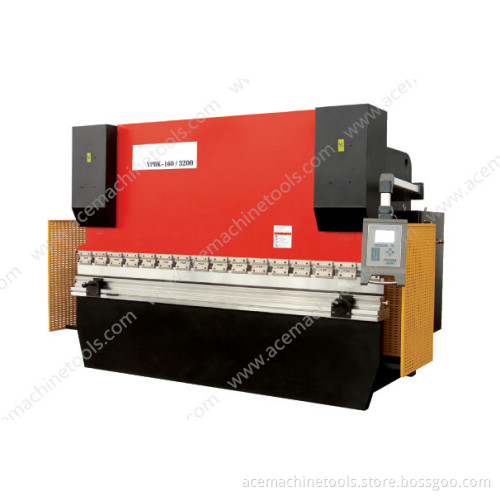

3200mm CNC Hydraulic Press Brake Machine

Electro Servo CNC Hydraulic Press Brake machine


Parameters:
Capacity: 1000/1600kN
Bending Length: 3200mm
Max. Shut Height: 390/465mm
Slide Stroke: 150/200mm


Main advantages and specifications:

1, All steel welded structure, vibrating treatment of ageing for removal of internal stress, with good rigidity and stability.

2, Two hydraulic cylinders with electro hydaulic servo valve. It control 3 axis (Y1+Y2+X).

3, CNC system uses Delem DA-52 system.

4, High accurate linear encoder.

5, High equipment, high precision,High efficient full CNC hydraulic press brake machine tools. the standard CNC machines equip 3+1 axis,--Y1(left cylinder up and down),Y2(right cylinder up and down),x(back gauge forward and backward),v(worktable deflection compensation)

6, main hydraulic and electrical systems both are the international famous brand.

7, the back gauge equips with high precision ball screw and straight guide.

8, Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly.
