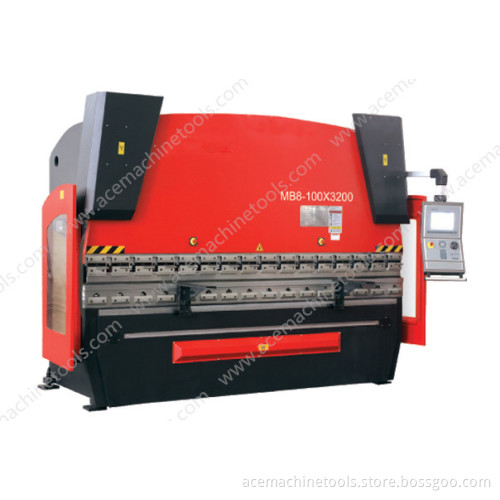

Hydraulic CNC Press Brake Machine (MB Series)

Hydraulic CNC Press Brake machine (MB Series)

Capacity: 630-4000kN
Bending length: 1500-6000mm

Main advantages and specifications:
1, Welded structure: The stress of the welded parts can be eliminated by vibration; So this forging press gives high accuracy.

2, MB series CNC hydraulic press brake has two hydraulic cylinders work at the same time, balance, convenient operation, safety with electro hydraulic servo valve.

3, Deflection can be compensated by hydraulic vaulted back-off system.

4, Backgauge mechanism can control several backgauge axes.

5, Its frame is welded with steel plate and is treated with annealing.

6, Hydraulic system adopts integrated control system and imported ring seals.

7, It has a beautiful and simple contour. CNC system uses DA65W/DA66W/DA52 system with Chinese manu made in delem company of Holland. It can also be equipped with mould fixture according to customer's requirement.

8, Protective fence and the safety interlocker to ensure the operation safety. Power supply switch that is set in the electric box will be automatically turned off when the box's door is opened or the fence is turned up. Protecting barrier with safety interlocker is mounted on the back of the machine.


Welcome for your inquiry of CNC Press Brake, Hydraulic Press Brake, Plate Press Brake Machine
